Title

A title object is an object used to store a title value in a flow. Its content can be determined as constant or changed dynamically during the flow.

The Assignment object can be used with the Assignment object to assign a value to the title object contents, and the Comparison object can be used with the Comparison object to compare the value in the title object.

In the flow design, no arrow is removed from the Title object, nor is an arrow from another object bound to the Title object. The title object is used only for the purpose of storing title information.

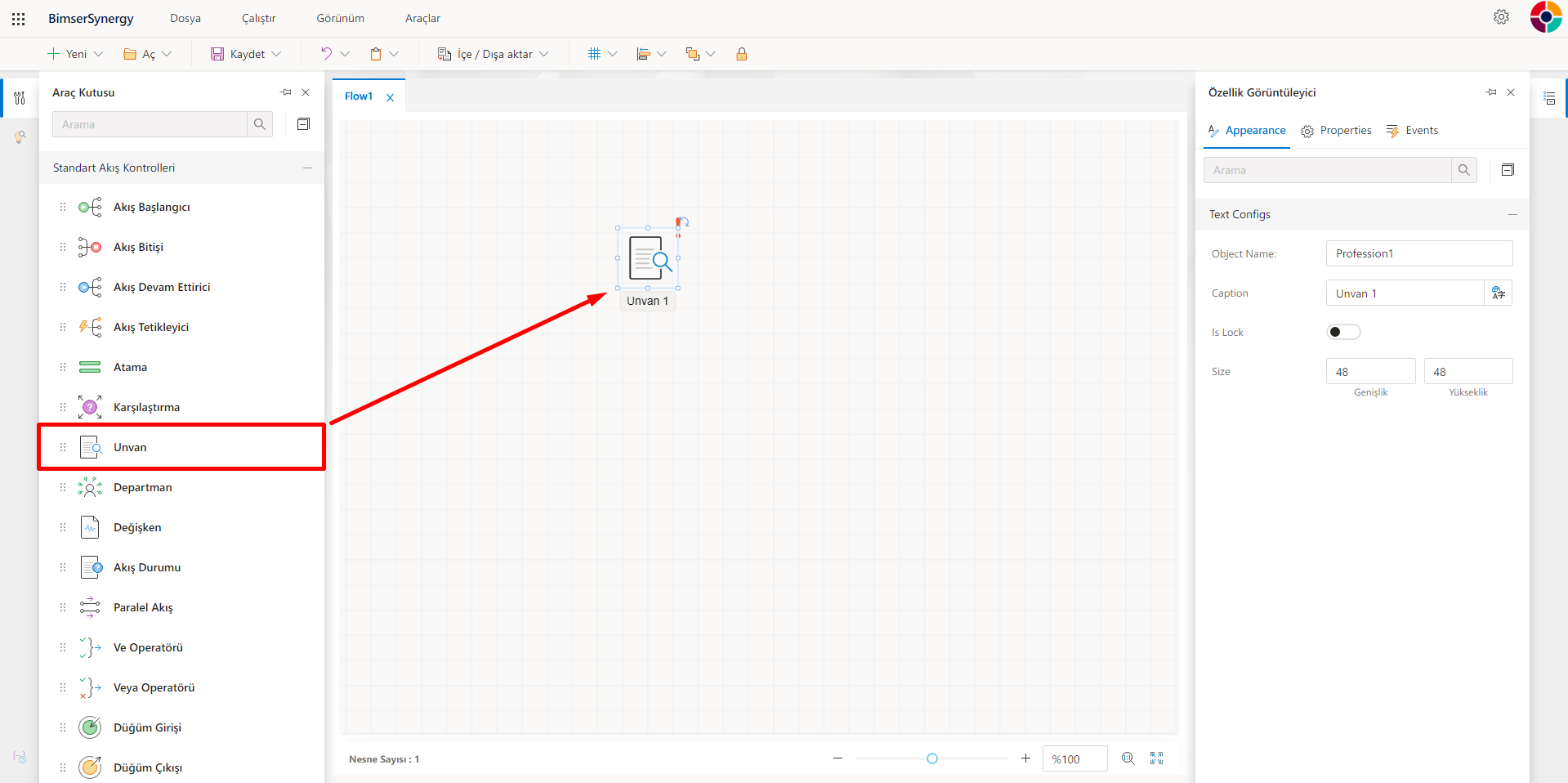

When the object in the Flow design screen is clicked, the object properties appear in the Property Viewer panel.

When the title object is clicked, there are "Appearance", "Properties" and "Events" tabs in the Property Viewer panel.

Appearance

Text Configs

'Object Name' - The name of the object to be used on the system side. On the code side, the object is accessed by the value that is written in the object name field.

'Caption' - The area where the object's title text is entered.

'Is Lock' - This field is activated if the object is not to be moved at the time of design.

'Size' - The part where the width and height of the object are adjusted.

Properties

Value

This is the tab on which to set the initial value of the Title object. On this tab, the title object can be given a constant value.

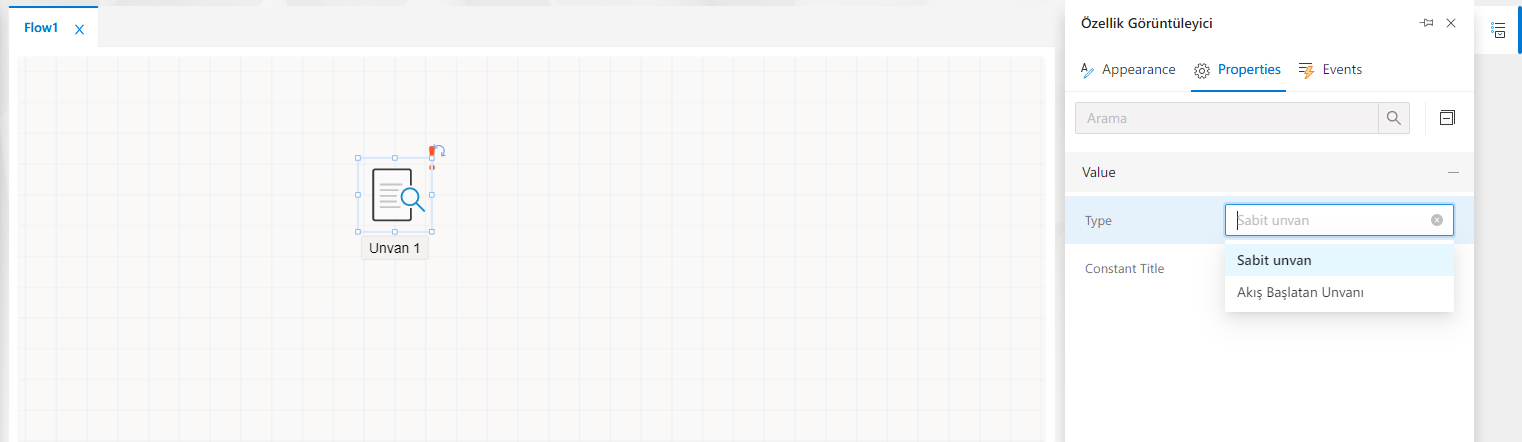

'Type' - The field in the Title object from which the title value to be kept is selected. The Type field lists two options, "Fixed title" and "Flow Initiator Title".

Selecting "Fixed Title" from the Type field will open a title selection field, Constant Title, that lists all the title records defined in the system. The title definition selected from this field is stored in the Title object.

When the "Flow Initiator Title" option is selected in the Type field, the Title object stores the title of the user who initiated the flow.

INFO

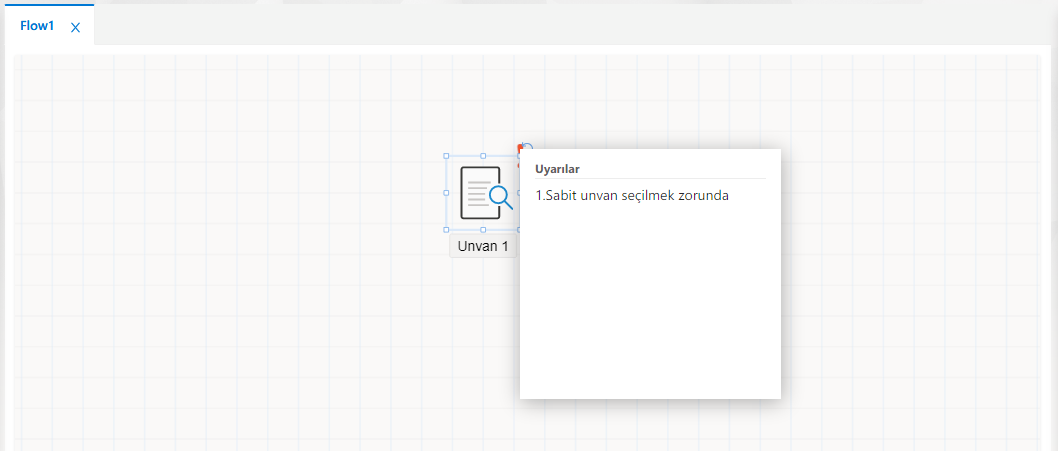

It is checked by the system that the attached properties on the object are correct. When a missing feature is found, a red exclamation point icon can be displayed on the object, and hovering over the icon with the mouse pointer can display what is missing or incorrect.

Events

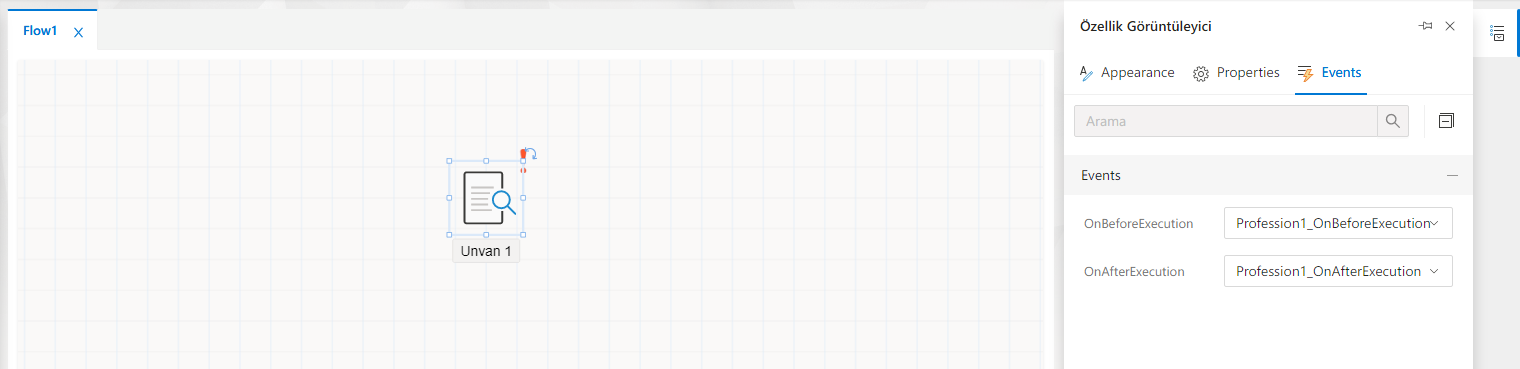

The events owned by the title object are located in the "Events" tab in the Property Viewer panel. Each event is triggered at different runtime moments, performing its own unique operations. Code written by the developer to these events is also executed at the time the corresponding event is triggered. To write code for any event, double-click the appropriate event line from the Events tab. The screen is directed to the flow code editor section named "FlowName.cs" and the method block for the clicked event is automatically created. The developer can construct any code block he wants in this method. Next to the event whose method is created on the code side by clicking from the Events tab, the method name information is automatically generated and the relationship between the event and the method is indicated.
