Parametric Field Identification Process

Information

You can quickly reach the relevant topic with the help of navigation on the right side.

Defining a Parametric Field in the Language Settings Menu in the Audit Activity Module User Help Document

1.System Infrastructure Definitions

It is the menu where personnel information is defined and the infrastructure required for other modules is constructed.

1.1.Configuration Settings

Menu Name: System Infrastructure Definitions/ BSAT/ Configuration Settings

These are the menus where special settings are made in the QDMS system. The settings made in these menus are common to all QDMS users.

1.1.1. Language Settings

Menu Name: System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings

From the language settings menu, the names of the menus and fields seen on the QDMS can be changed. New fields can be added to modules. The requirement status of existing fields can be edited. The order in which fields appear on the screen can be changed.

1.1.1.1. Audit Activity Module Create New Field for Common Use

In the Audit Activity Module, extra fields that are not in the system requested by the company can be defined on the Audit Plans menu, Audit Plans-Audits-New Registration screen, Other Information-Findings tabs in the Pending Audits and Unplanned Audits menus. These defined fields apply to all Control Activities Module resources. System Infrastructure Definitions/BSAT/ Configuration Settings/Language Settings menu is clicked. On the Language Settings page that opens, "Audit Activity" is selected in the Module field and the language definitions related to the Audit Activity are displayed on the screen.

In the Audit Activities Module, when the Perform Audit button is clicked in the Integrated Management System```>Audit Activity\>Pending Audits menu, the parametric field is defined from the Language settings on the other information tab and on the findings tab and when the New button is clicked on the Findings tab. Integrated Management System\>Audit Activity\>Unplanned Audits Perform Audit when clicking the next button- Updating Record, Other information tab and Findings tab When clicking the New button, parametric field definition is also performed from the Language settings in the finding identification menu. In addition, the parametric field definitions made in the language settings are displayed in the Audit Plans-Audits-New Registration screen opened when the Audit Plans-Audits button is clicked when the Audit Plans-Audits button is clicked in the Integrated Management System\>Audit Activity\>```Audit Plans menu, and parametric field definitions are made for this screen. In short, parametric field type definitions are made in the language settings of Pending Audits in the Audit Activities Module, Other information and Finding tabs for Unplanned Audits, in the Audit Plans menu, in the Audits -New Registration screens. In the language settings made, the definition provides common use for menus.

Parametric Type Fields Defined in the Audit Activity Module and Their Definitions;

1-Date type: The calendar field is the parametric field to which it is added. Sample Short Code: lblD_DPARAM1(Pending Audits are displayed on the More information tab on the Perform Audit-Update Record screen of the Unplanned Audits menus and on the Audit Plans-Audits-New Registration screen on the Audit Plans menu.), lblB_DPARAM1(Displayed on the Finding Identification screen opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus)

2-List type: A single selection is made from multiple list elements. List elements are defined and selected in the defined list elements. Sample Shortcode: lblD_LPARAM1 (Pending Audits are displayed on the More information tab on the Perform Audit-Update Record screen of the Unplanned Audits menus and on the Audit Plans-Audits-New Registration screen on the Audit Plans menu.), lblL_LPARAM1(Displayed on the Finding Identification screen opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus.)

3-Text type: A parametric field that adds a text box that allows manual typing. Sample Shortcode: lblD_PARAM3 (Pending Audits are displayed on the More information tab on the Perform Audit-Update Record screen of the Unplanned Audits menus and on the Audit Plans-Audits-New Registration screen on the Audit Plans menu.), lblT_TPARAM1(Displayed on the Finding Identification screen opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus.)

4-Text (Multi-Line)Type : It is a parametric field that adds a multi-line text box with no character limit that allows manual typing. Sample Short Code: lblD_PARAM1(Pending Audits are displayed on the Perform Audit-Update Record screen of the Unplanned Audits menus, on the More information tab on the Update Record, and on the Audit Plans menu on the Audit Plans-Audits-New Enrollment screen.), lblT_TPARAM4 (Displayed on the Finding Identification screen, which is opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus.)

5- Unit of Measurement Type: It is a parametric field that makes data entry as a measurement. Next to the defined parametric field is the field from which Units of Measurement is selected. Units of measurement in the Units of measurement selection area are the units of measurement defined in the System Infrastructure Definitions```>```>BSAT\Definitions```>```Units of Measurement Definition menu. Sample Short Code: lblD_NPARAM1(Pending Audits are displayed on the More information tab on the Perform Audit-Update Record screen of the Unplanned Audits menus and on the Audit Plans menu, on the Audit Plans-Audits-New Registration screen.), lblB_NPARAM1(Displayed on the Finding Identification screen, which is opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus.)

6-Monetary Type: A parametric field that makes data entry in monetary terms. Next to the defined parametric field is the field where currencies are selected. The currencies in the Currencies selection area are the currencies defined in the System Infrastructure Definitions```>BSAT\>Definitions\>```Currencies Definition menu. Sample Shortcode: lblD_NPARAM4 (Pending Audits are displayed on the More information tab on the Perform Audit-Update Record screen of the Unplanned Audits menus and on the Audit Plans menu, on the Audit Plans-Audits-New Registration screen.), lblB_NPARAM4 (Displayed on the Finding Identification screen opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus.)

1.1.1.1.1. Pending Audits in Audit Activity Module-Unplanned Audits (Other Information Tab) and Defining Parametric Fields in Audit Plans Menus

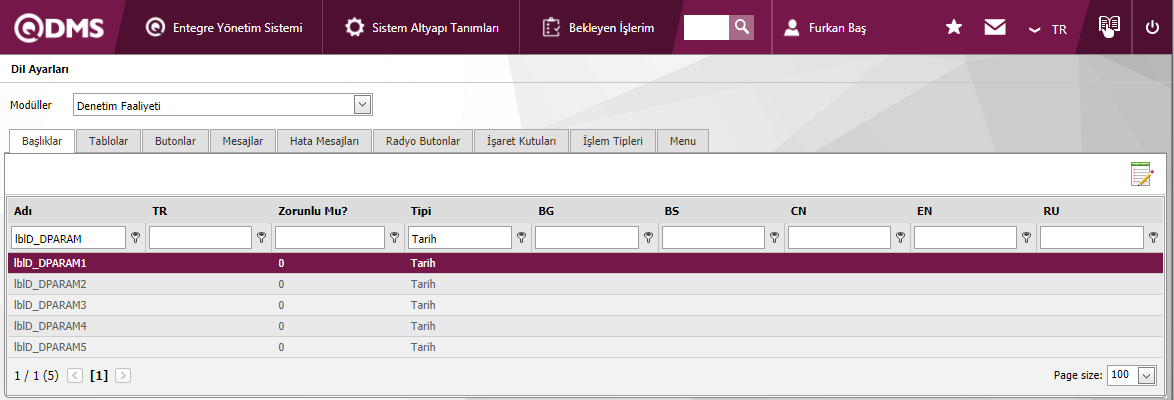

1.1.1.1.1.1.List of Date Type Parametric Fields

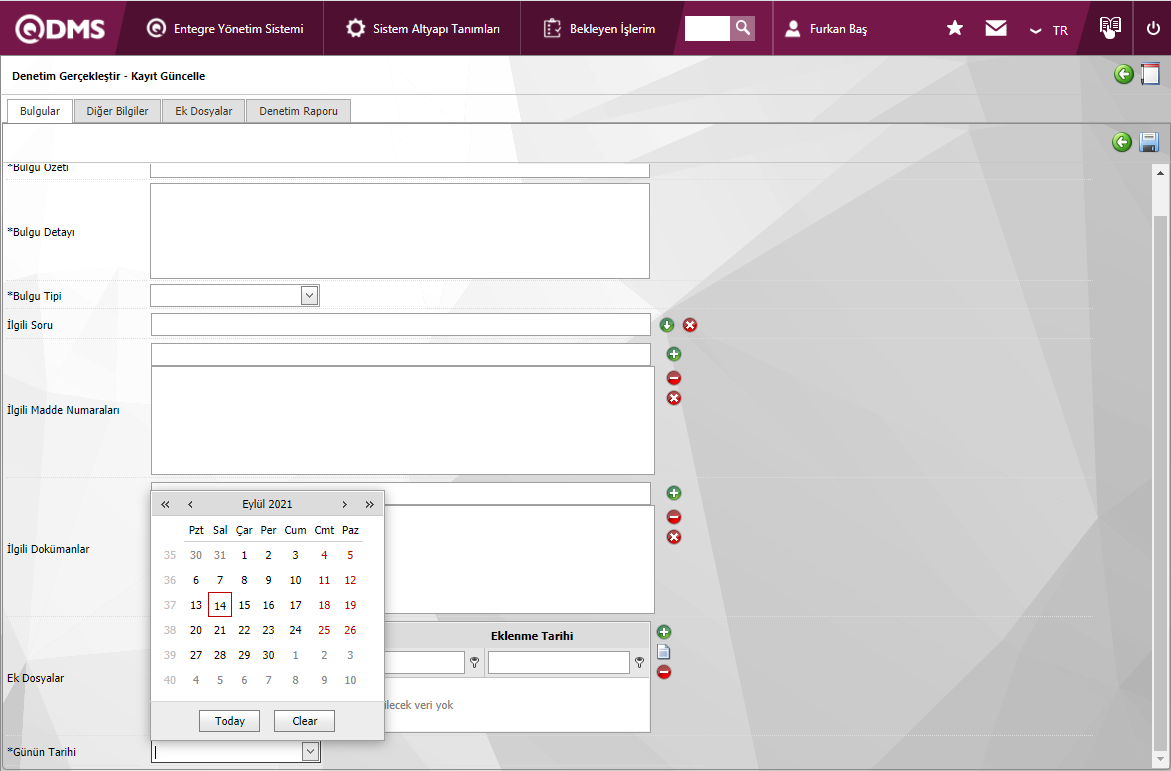

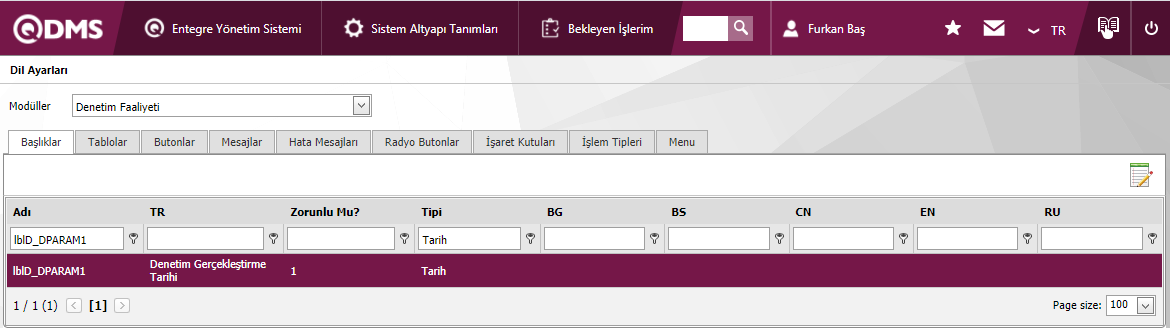

Pending Audits in the Audit Activities Module -Perform Audit of the Unplanned Audits menus - More information tab on the Record update screen and in the Audit Plans menu To define a date type parametric field on the Audit Plans-Audits-New Registration screen, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu and search for Date type parametric fields by typing Date in the type field and List of date type parametric fields Language settings menu. The field definition of the listed date-type parametric fields is made.

1.1.1.1.1.2. Date-Type Parametric Field Identification

lblD_DPARAM1 To enter the data of the field by selecting the date type parametric field (change) button is clicked.

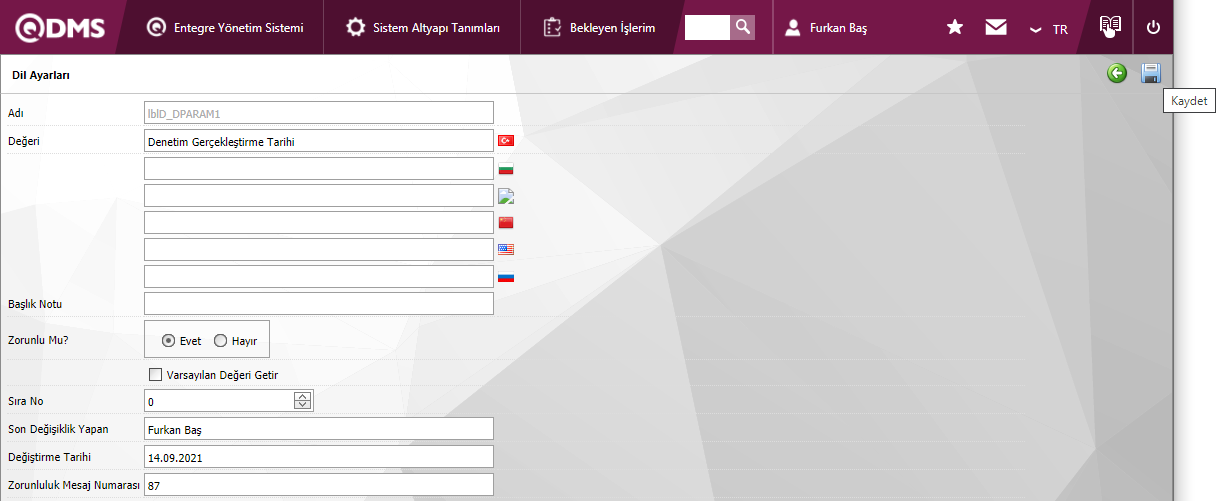

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(Save) button is clicked to record the date type parametric field definition.

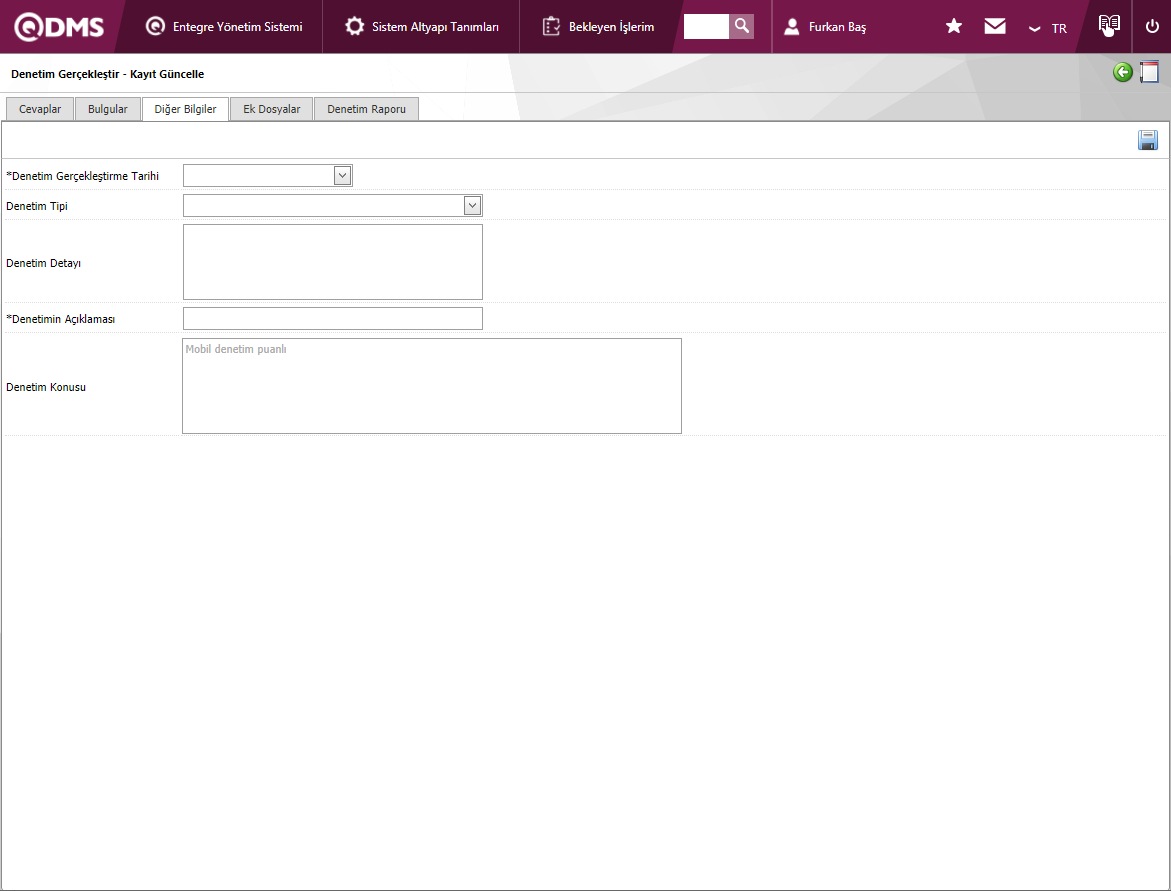

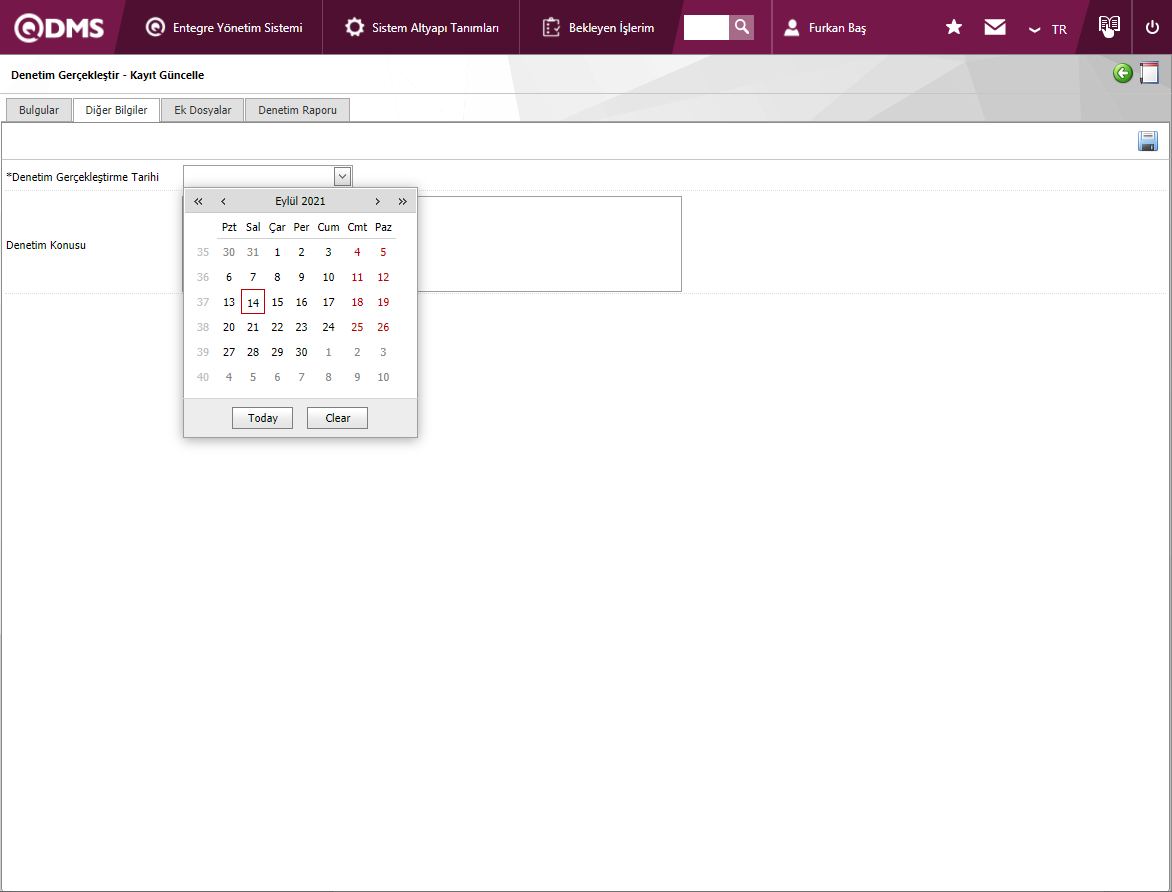

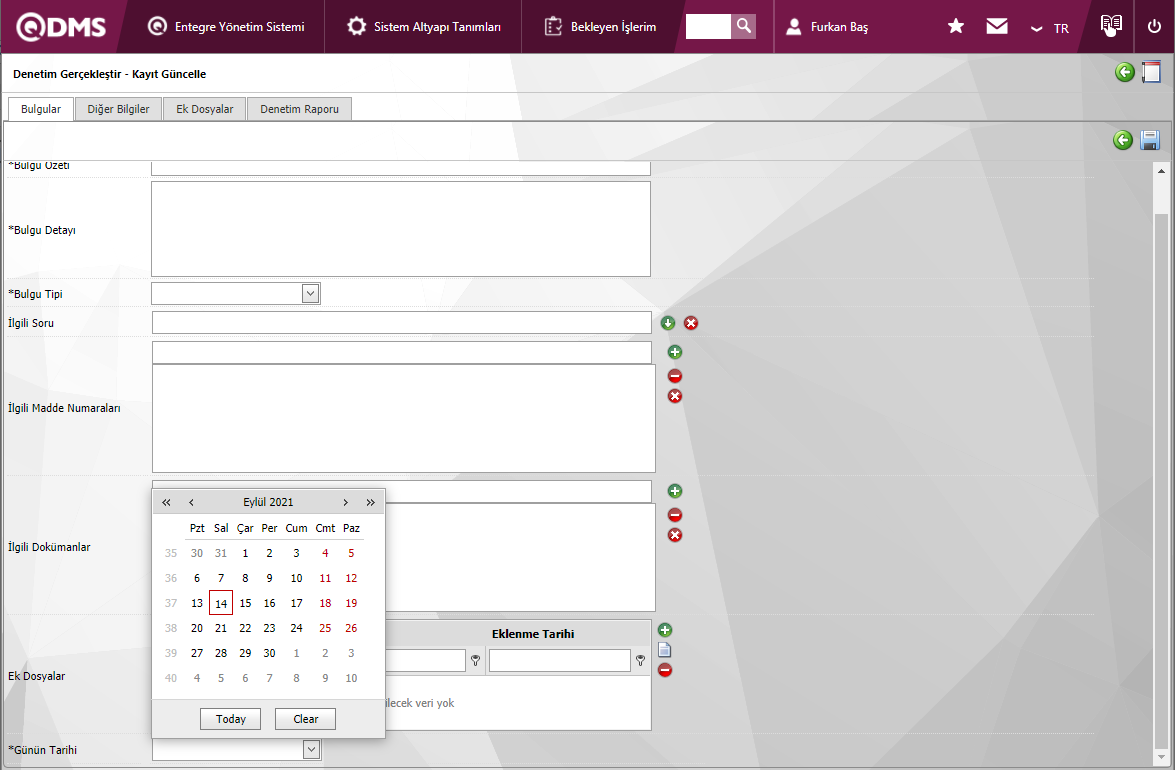

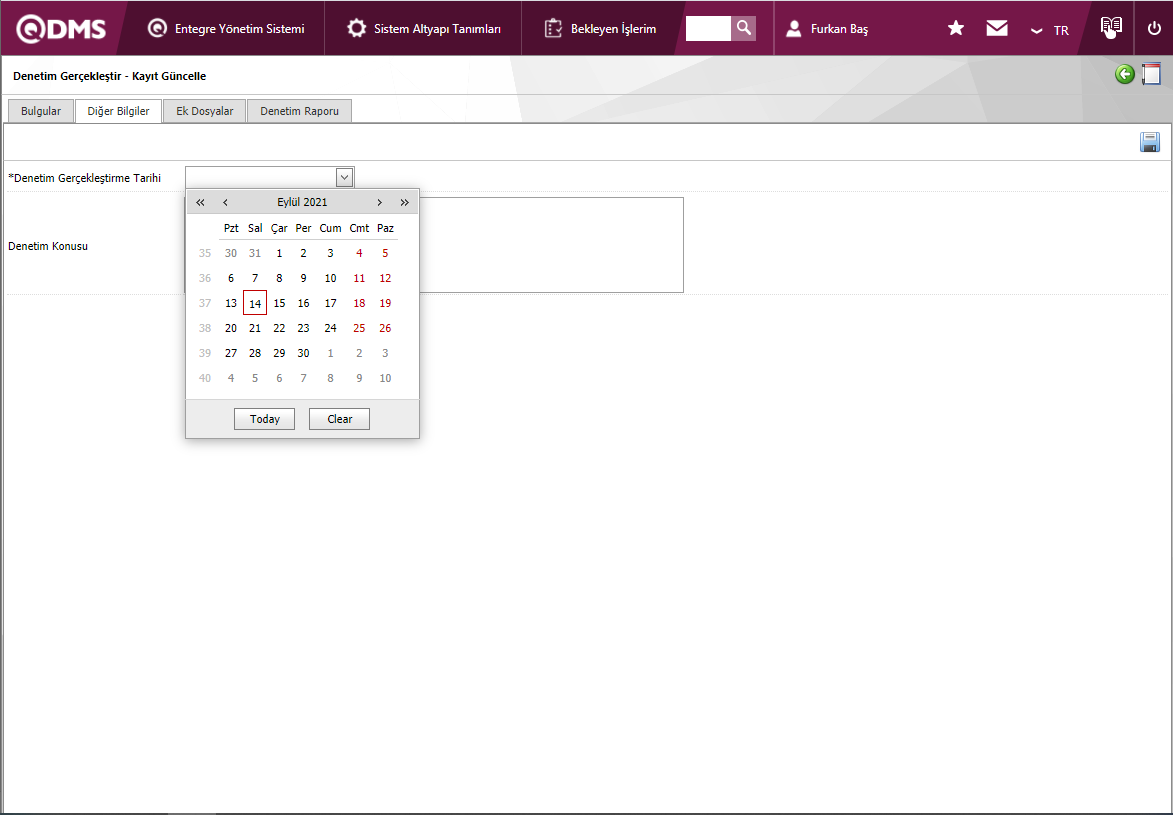

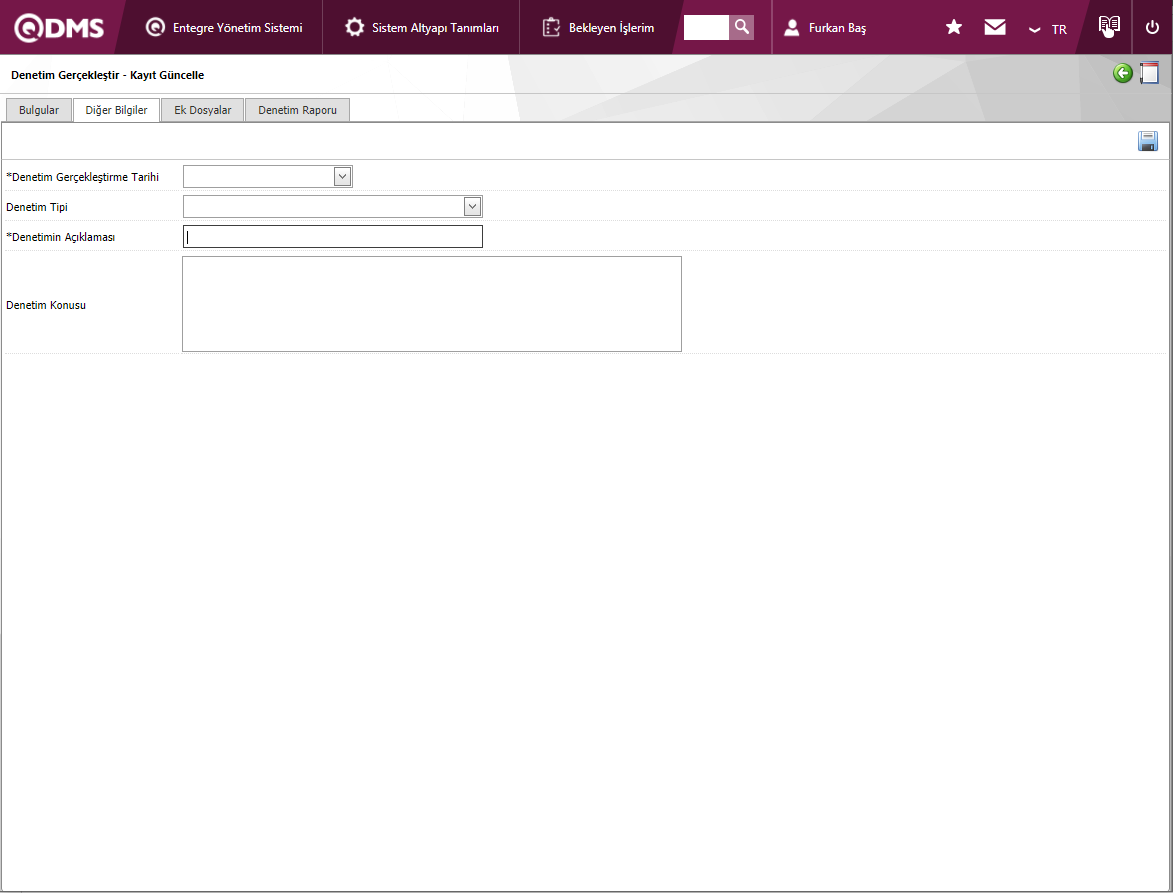

The defined Date-type parametric field is displayed on the Other Information tab on the Perform Audit-Update Record screen, which is opened by clicking the Perform Audit button in the Integrated Management System```>Audit Activity\>```Pending Audits menu.

The defined Date-type parametric field is displayed on the More information tab on the Perform Audit-Update Record screen, which is opened by clicking the Next button in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu.

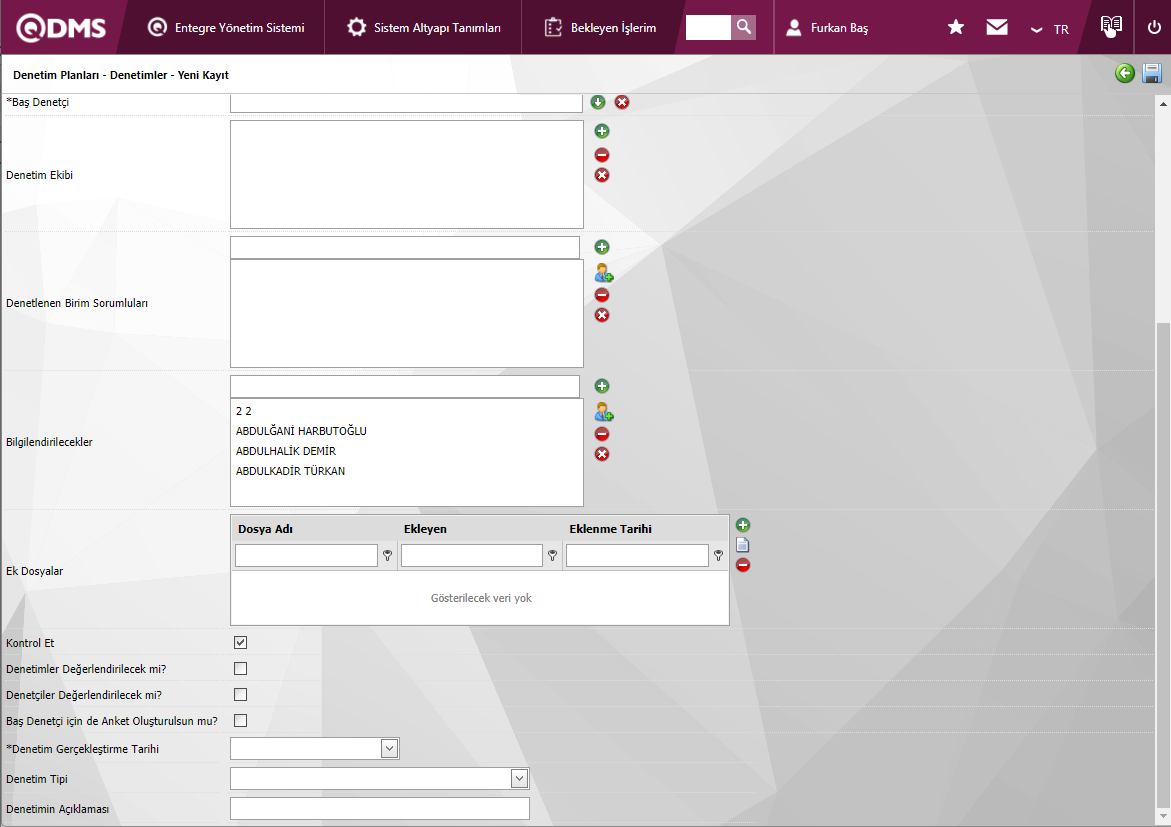

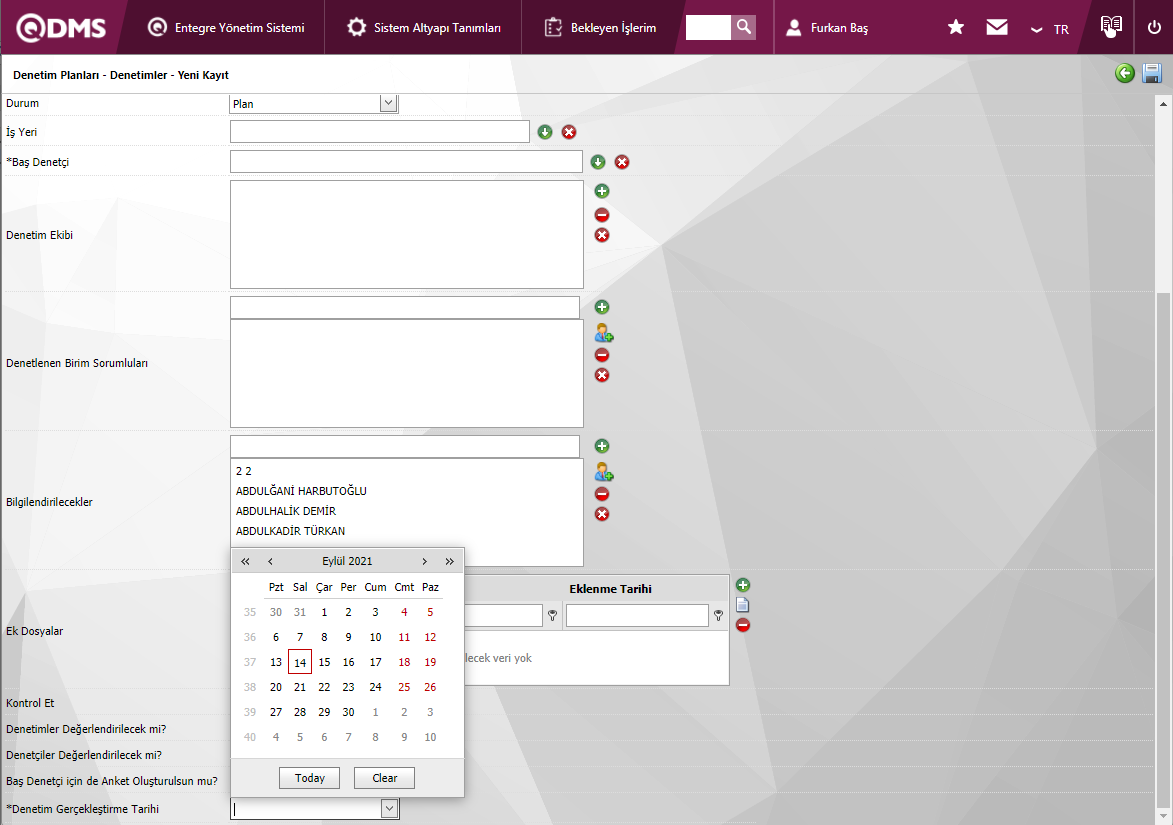

The defined Date type parametric field is displayed on the Audit Plans-Audits-New Record screen in the Integrated Management System```>Audit Activity\>```Audit Plans menu.

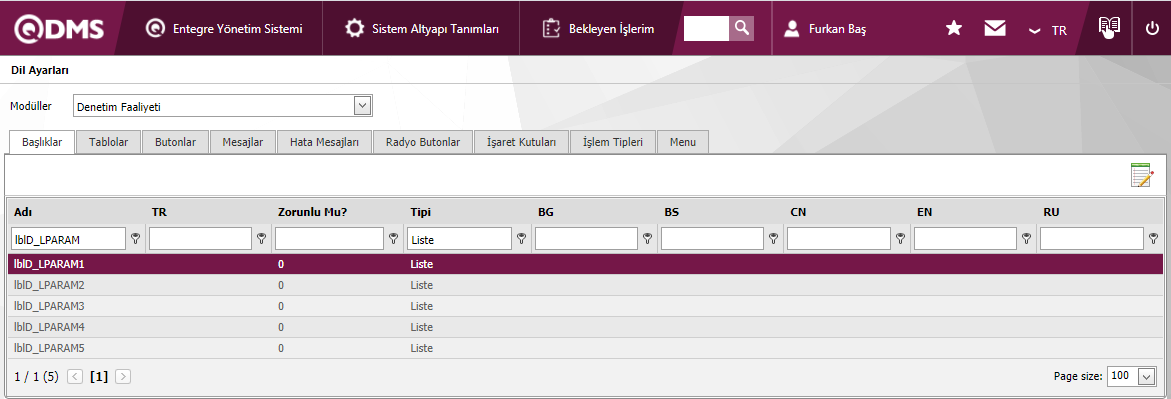

1.1.1.1.1.3.List of Parametric Fields with List Type

Pending Audits in the Audit Activities Module -Perform Audit of Unplanned Audits menus- Other information tab on the Registration update screen and in the Audit Plans menu To define a List-type parametric field on the Audit Plans-Audits-New Registration screen, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, search for List type parametric fields by typing List in the type field and search for List of list-type parametric fields Language settings menu. Listen List type parametric fields are defined as fields.

1.1.1.1.1.4.Defining a List-Type Parametric Field.

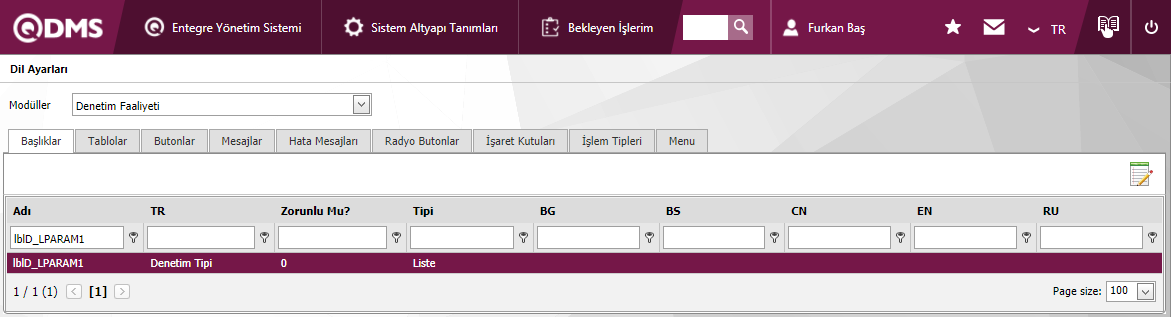

lblD_LPARAM1 For data entry of the field by selecting the list type parametric (change) button is clicked.

On the screen that opens, the field name we want to see is written in the value field.

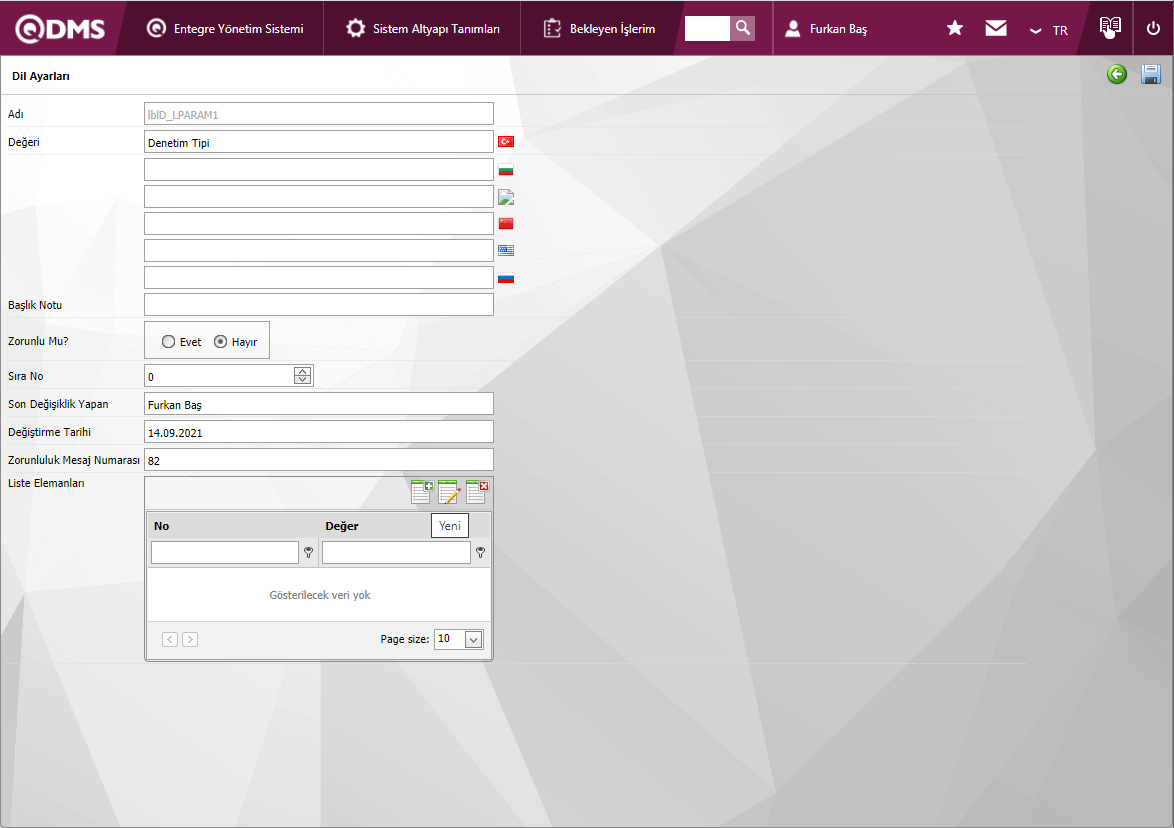

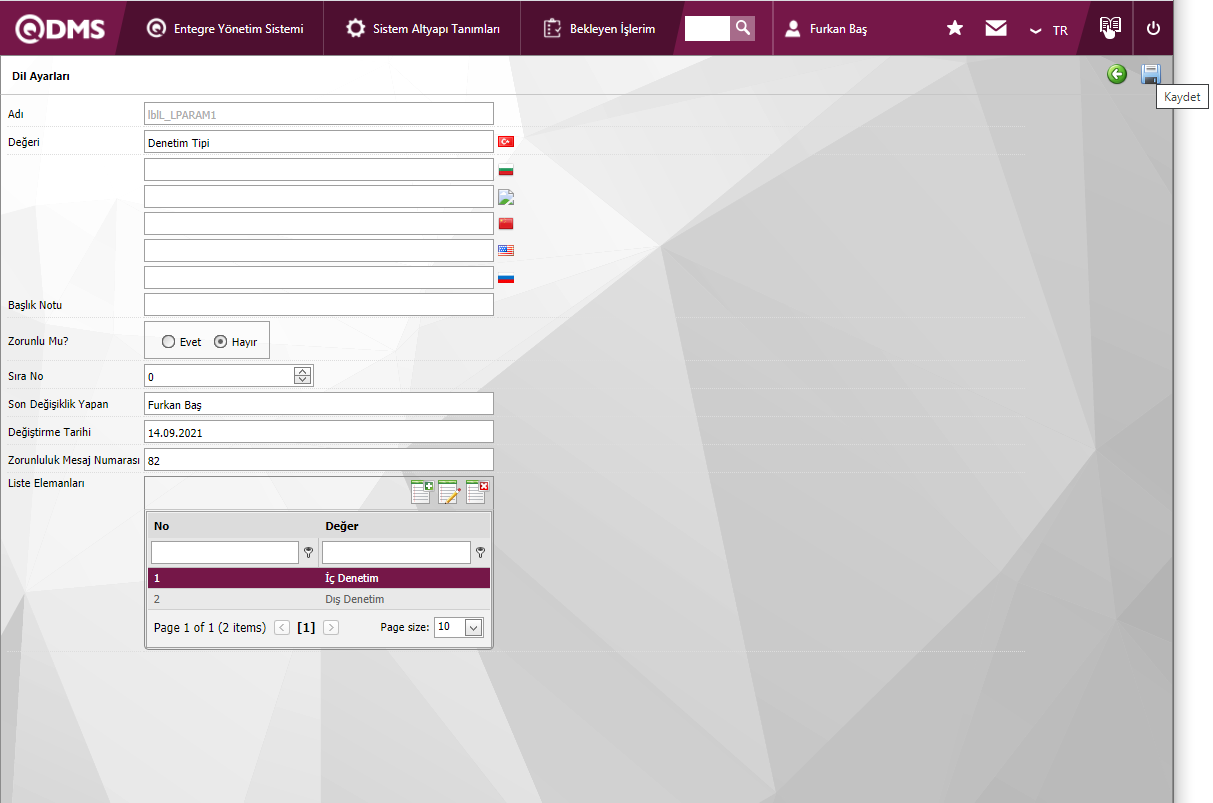

To enter the list values of a list-type field Click the (New) button, type the list values and save them. The list element is defined for a value of 1.

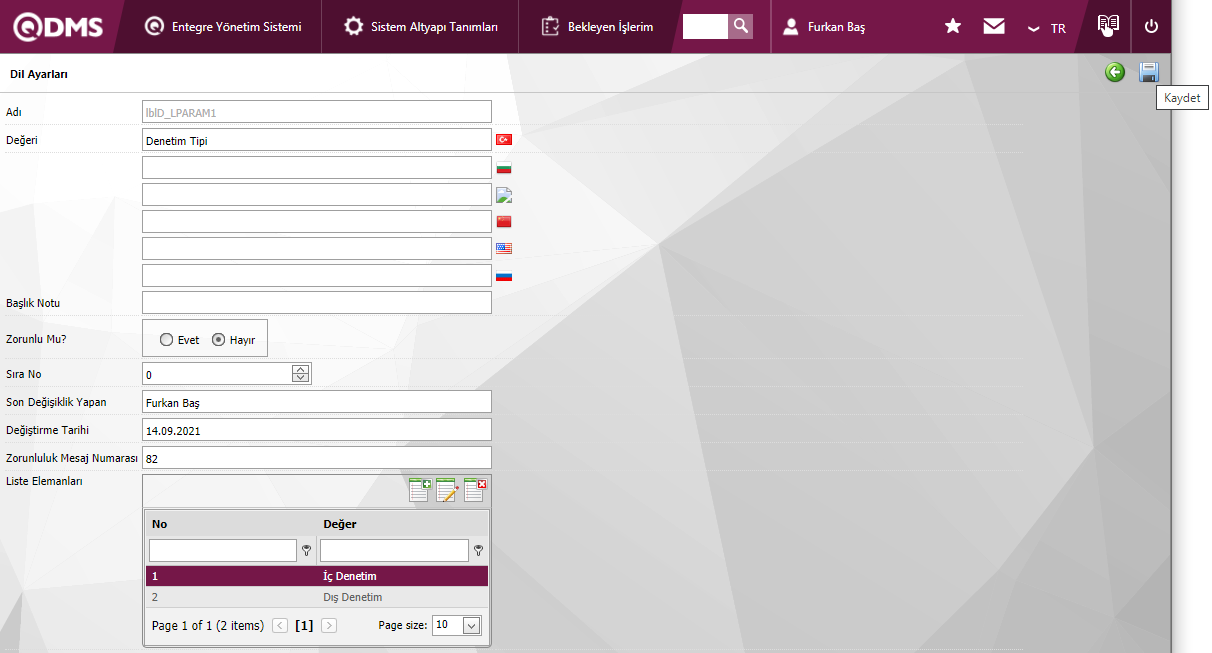

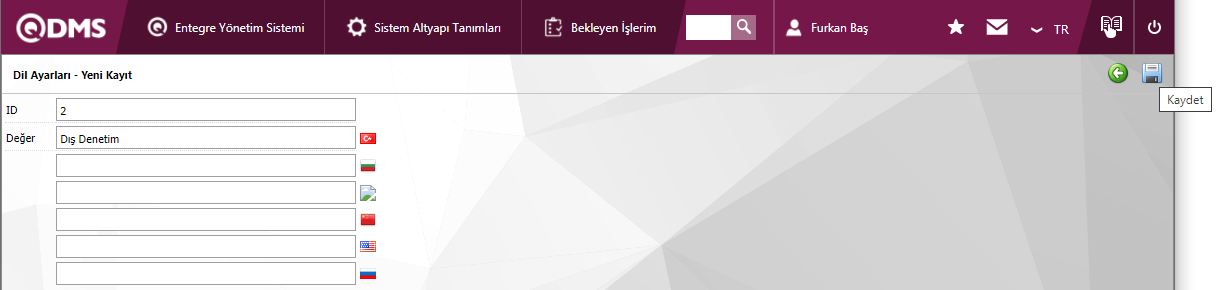

The list element value is defined for 2.

Whether the field will be mandatory or not, by defining the sequence no information and list elements and filling in the required fields(Save) button is clicked to record the list-type parametric field definition.

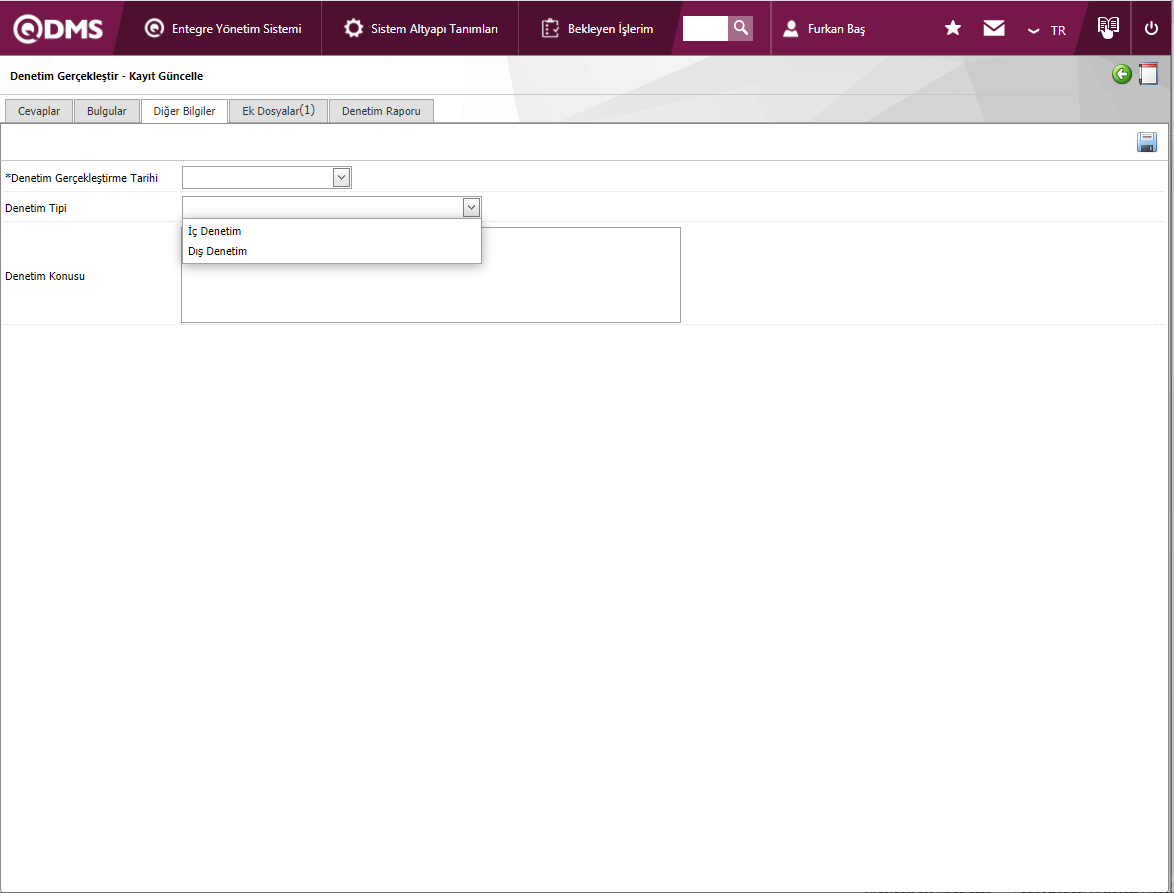

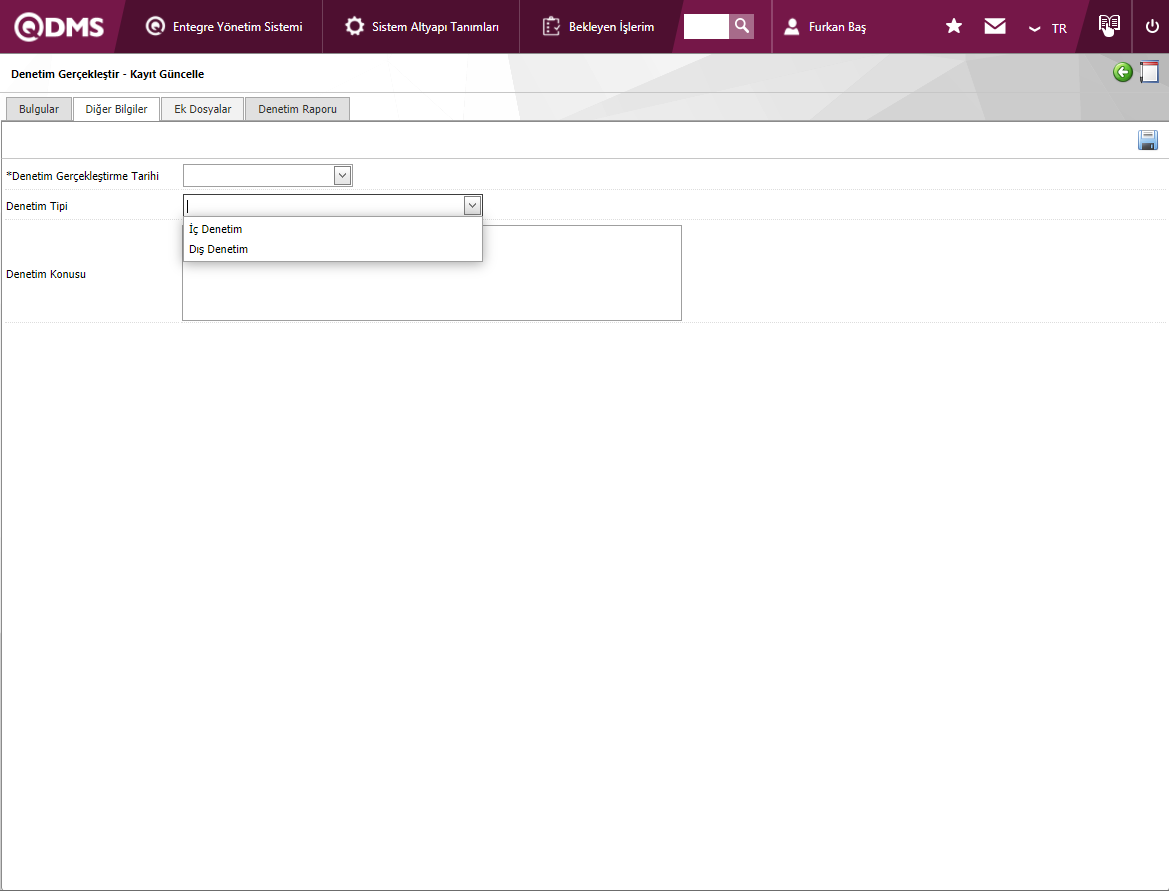

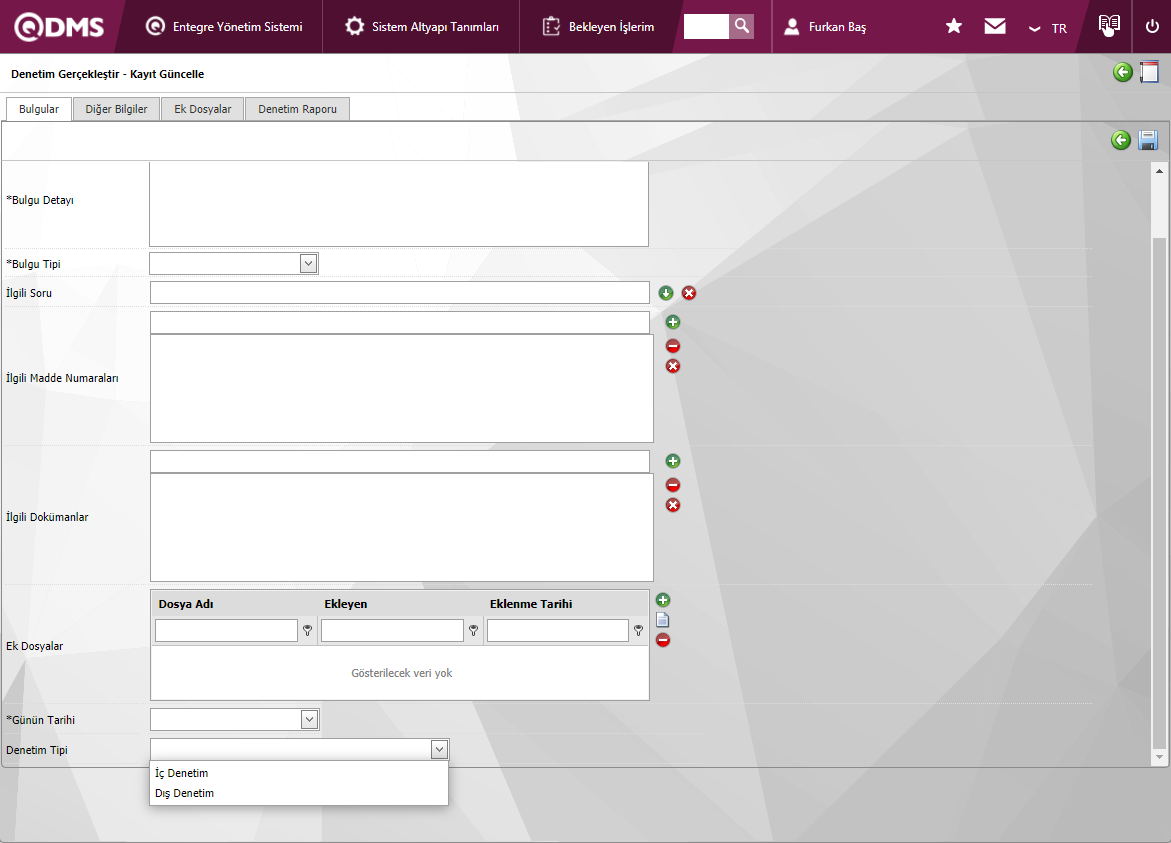

The defined List-type parametric field is displayed on the Other Information tab on the Perform Audit-Update Record screen, which is opened by clicking the Perform Audit button in the Integrated Management System```>Audit Activity\>```Pending Audits menu.

The defined List-type parametric field is displayed on the More information tab on the Perform Audit-Update Record screen, which is opened by clicking the Next button in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu.

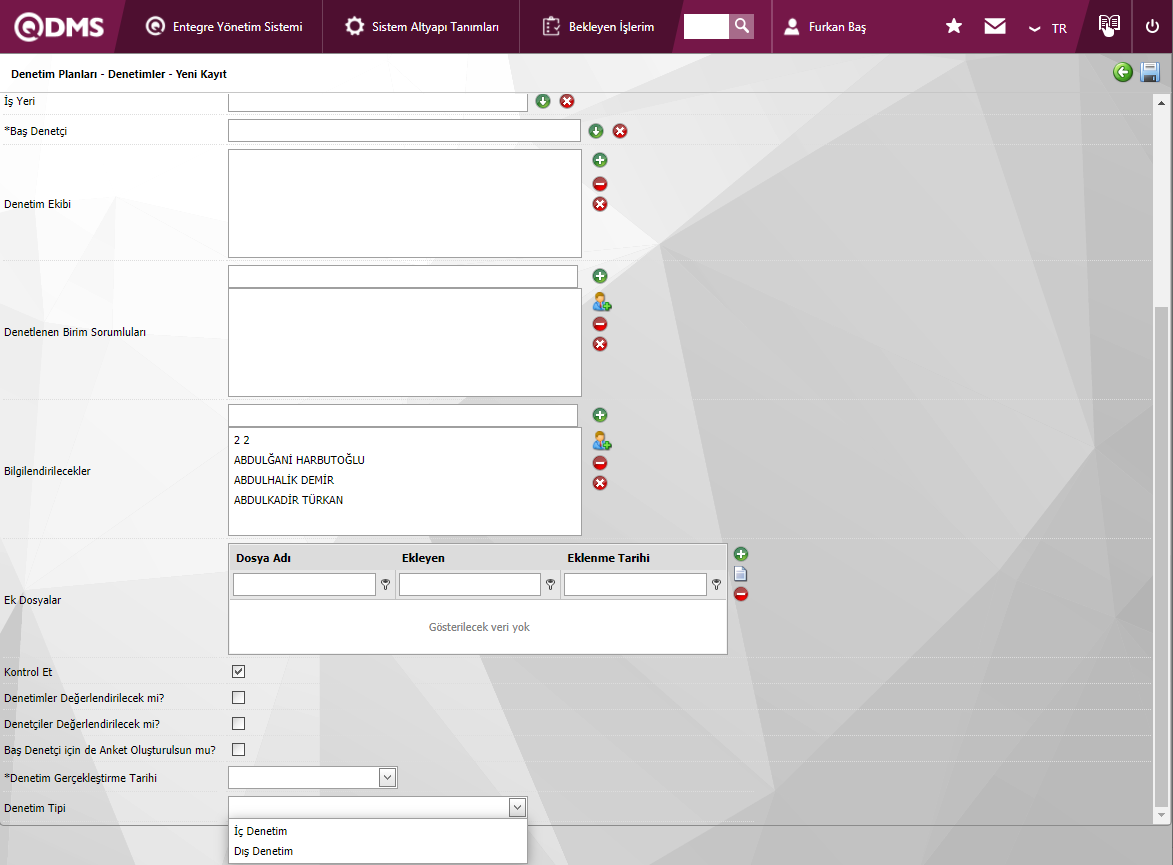

The defined List-type parametric field is displayed on the Audit Plans-Audits-New Record screen in the Integrated Management System```>Audit Activity\>```Audit Plans menu.

1.1.1.1.1.5.List of Parametric Fields with Text Type

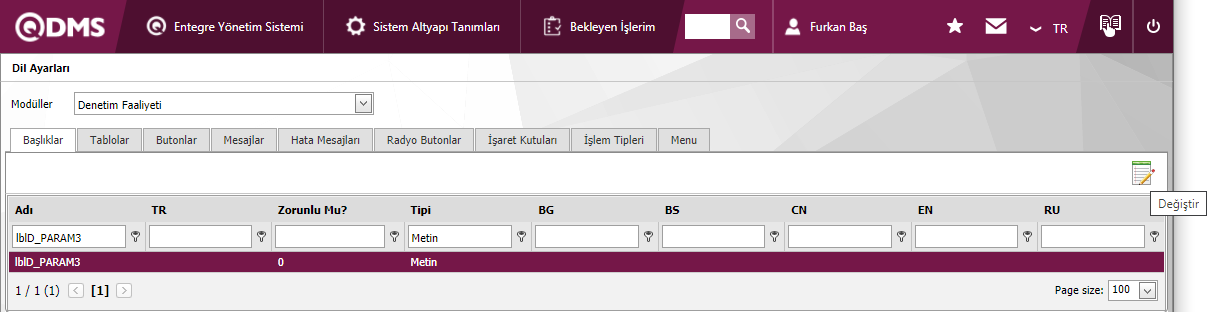

Pending Audits in the Audit Activities Module -Perform Audit of the Unplanned Audits menus - Other information tab on the Registration update screen and in the Audit Plans menu Audit Plans-Audits-New Registration screen To define a text-type parametric field, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, type Text in the type field and search for parametric fields with text type and List of parametric fields with text type Language settings menu. The field definition of the listed text-type parametric fields is made.

1.1.1.1.1.6. Define a Text-Typed Parametric Field

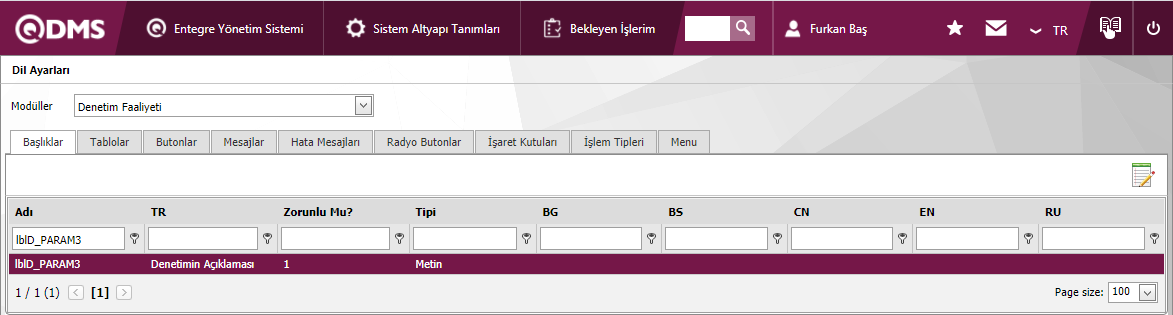

lblD_PARAM3 To enter the data of the field by selecting the parametric field with text type (change) button is clicked.

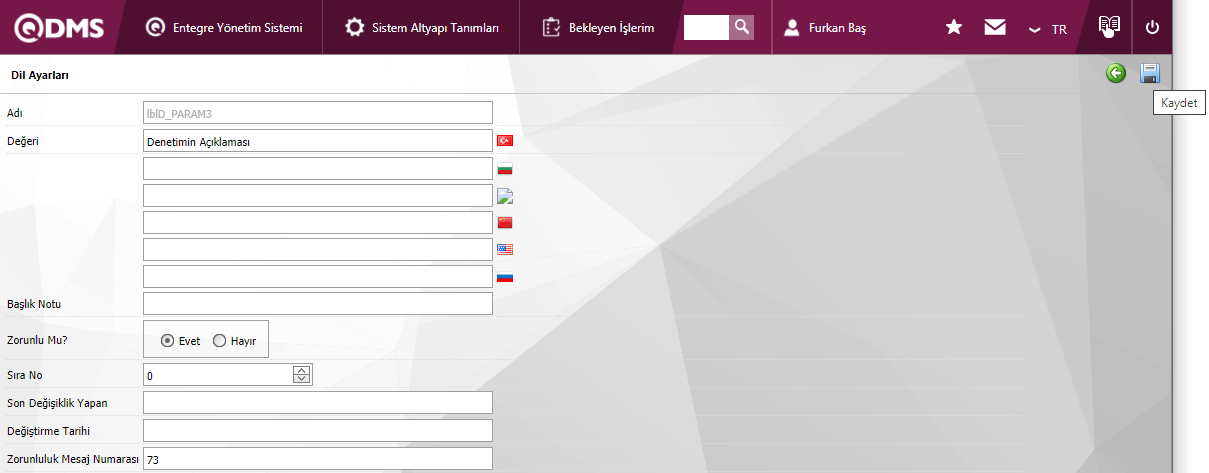

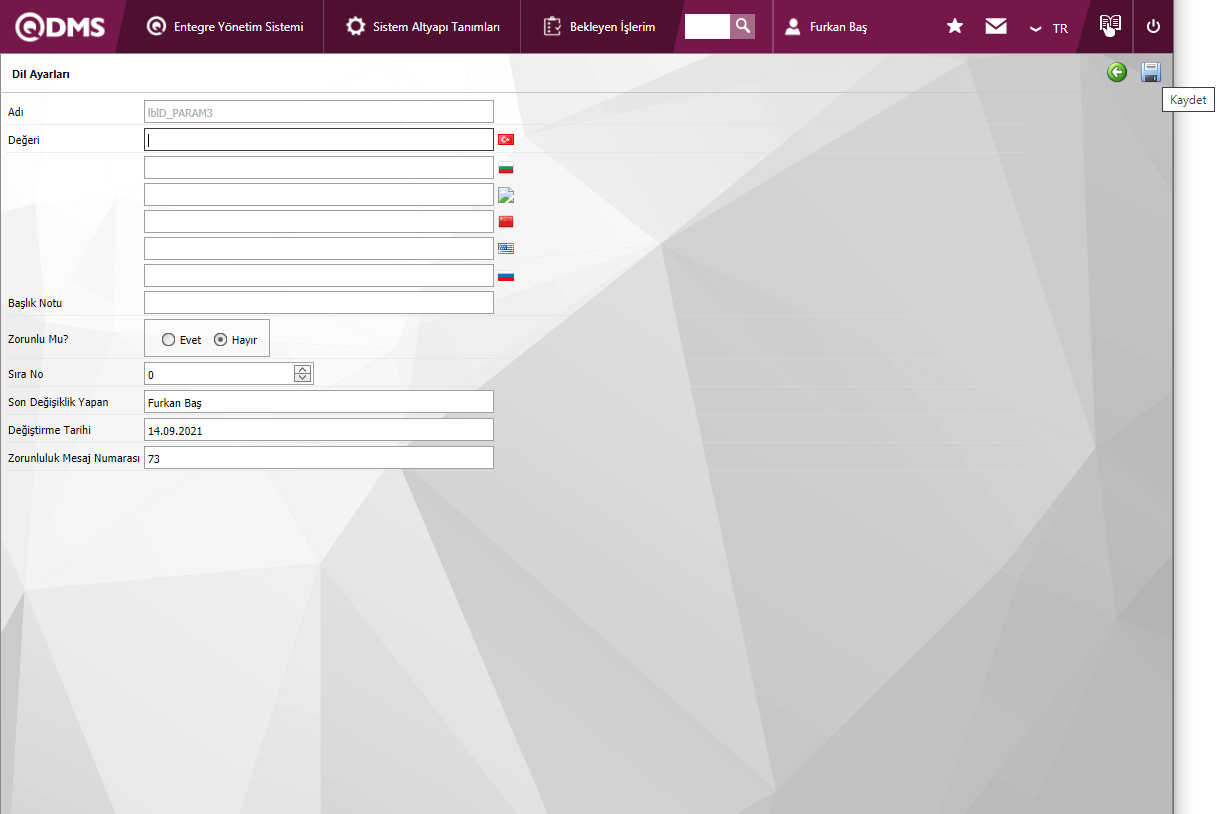

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(save) button to record the text type parametric field definition.

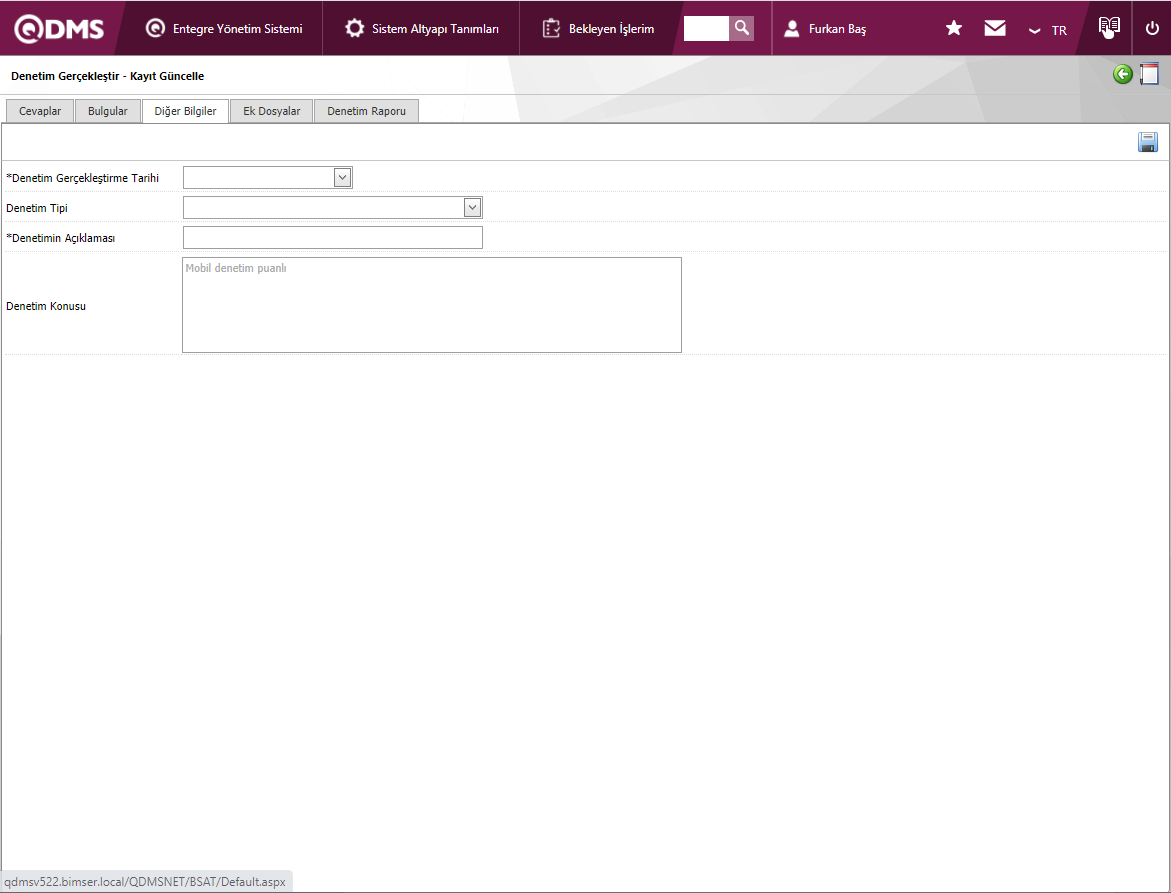

The defined Parametric field with Text type is displayed on the Other Information tab on the Perform Audit-Update Record screen, which is opened by clicking the Perform Audit button in the Integrated Management System```>Audit Activity\>```Pending Audits menu.

The defined Parametric field with Text type is displayed on the More information tab on the Perform Audit-Update Record screen, which is opened by clicking the Next button in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu.

The defined Text-type parametric field is displayed on the Integrated Management System```>Audit Activity\>```Audit Plans menu and on the Audit Plans-Audits-New Record screen.

1.1.1.1.1.7.List of Parametric Fields with Text (Multiline) Type

Pending Audits in the Audit Activities Module -Perform Audit of the Unplanned Audits menus - Other information tab on the Record update screen and in the Audit Plans menu To define a parametric field of type Text (Multi Line) on the Audit Plans-Audits-New Registration screen, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, type Text (Multiple Line) by typing Text (Multiple Line) in the type field and search for parametric fields of Text (Multiple Line) type and Text(Multi-Line) A list of row-type parametric fields is listed on the Language Settings menu. The field definition of the listed Text (Multiline) type parametric fields is made.

1.1.1.1.1.8.Text (Multiline) Typed Parametric Field Identification

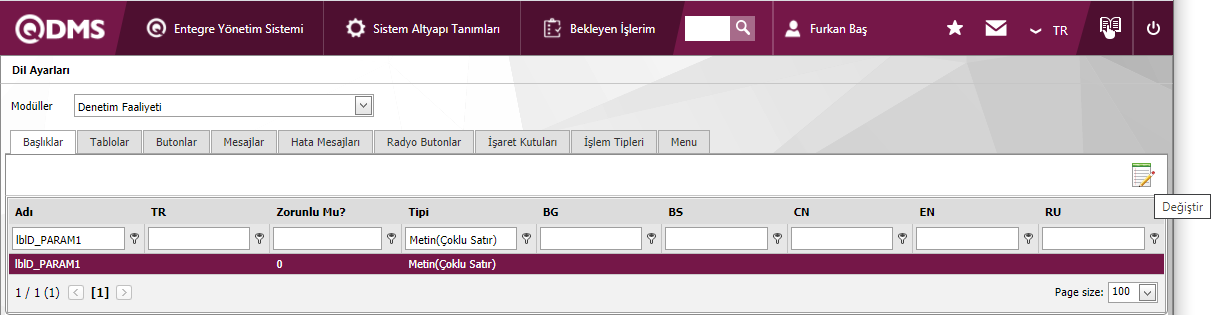

lblD_PARAM1 To select a text (Multiline) type parametric field and enter the field's data (change) button is clicked.

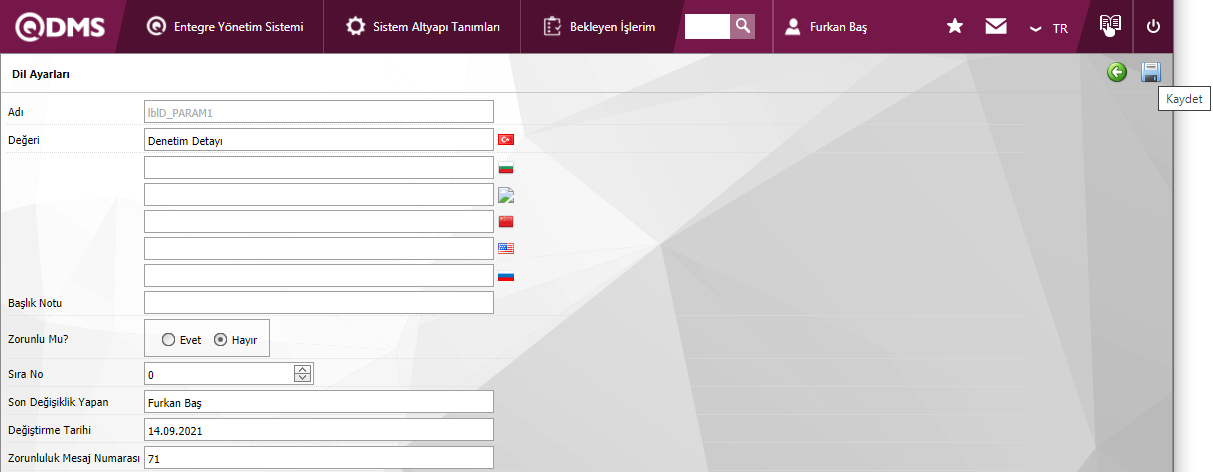

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(save) button to record the Text (Multiline) type parametric field definition.

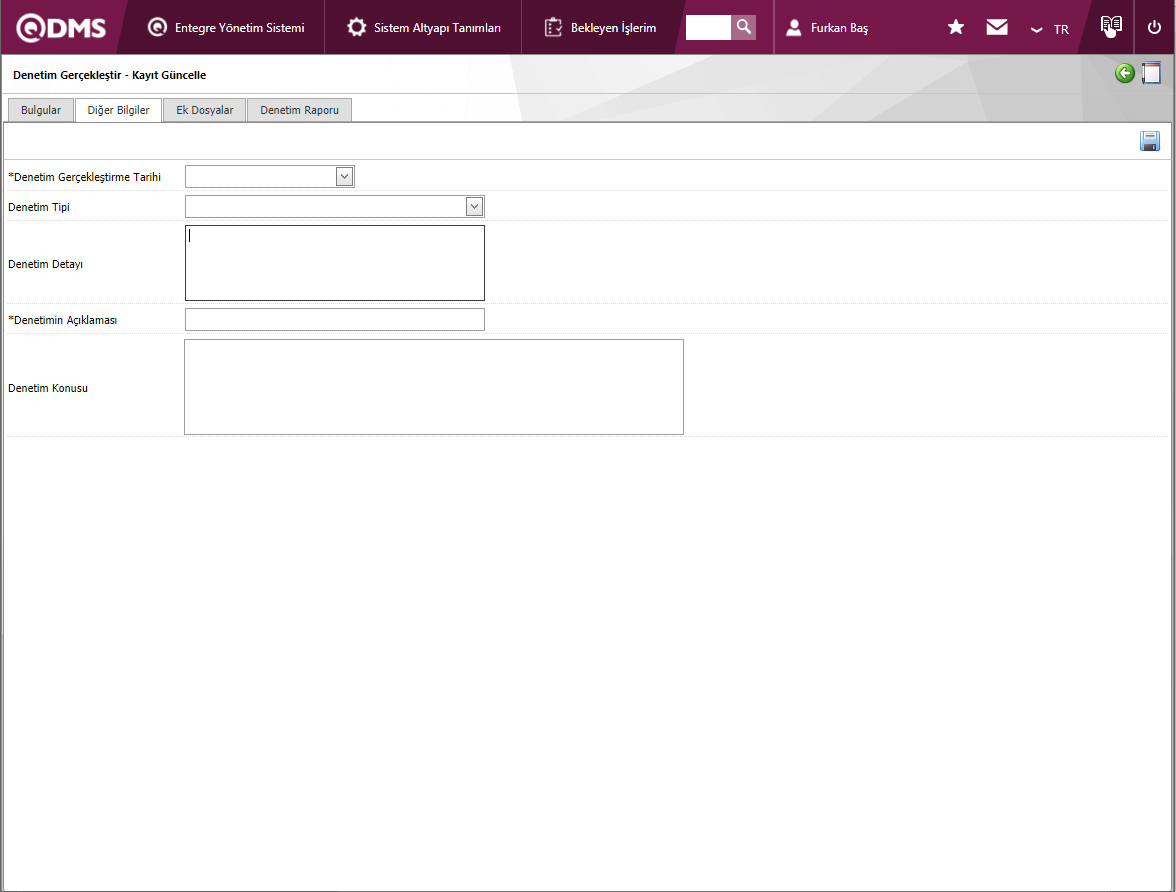

The defined Text (Multi Line) type parametric field is displayed on the Other Information tab on the Perform Audit-Update Record screen opened by clicking the Perform Audit button in the Integrated Management System```>Audit Activity\>```Pending Audits menu.

The defined Text (Multi Line) parametric field is displayed on the Other information tab on the Perform Audit-Update Record screen opened by clicking the Next button in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu.

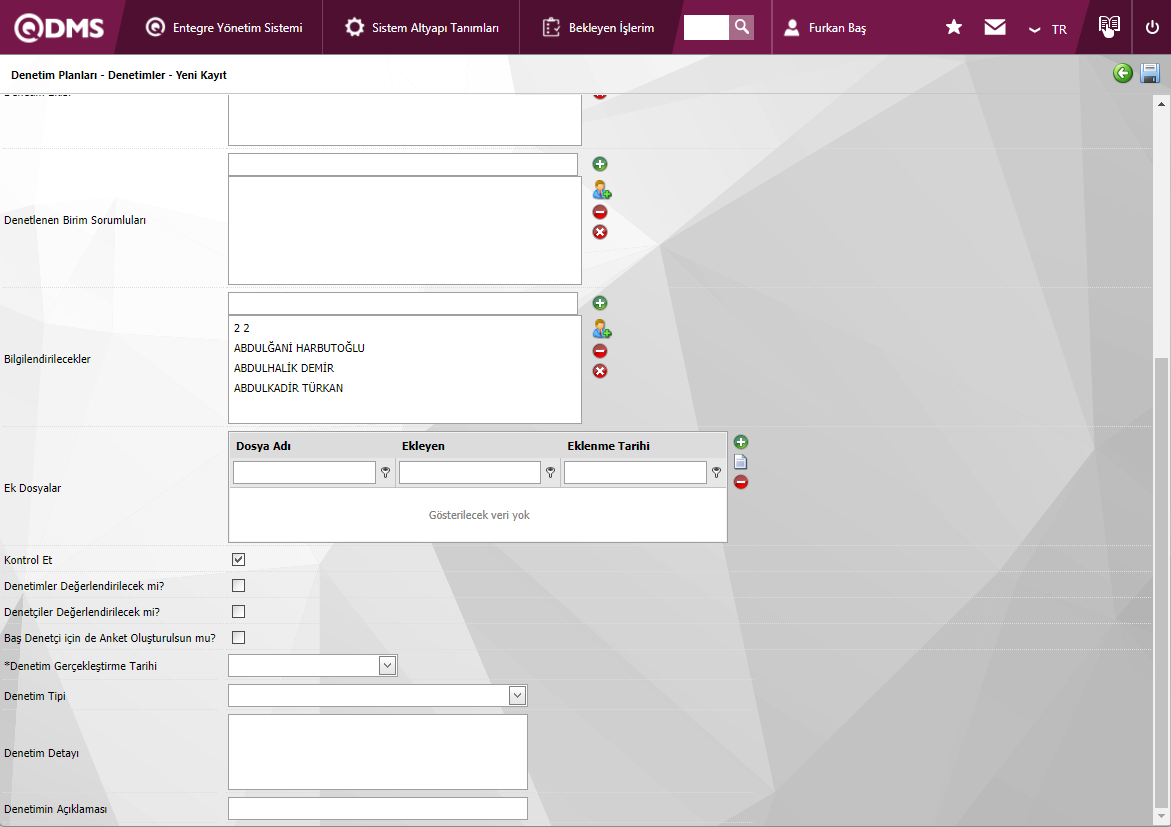

The defined Text(Multi-Line) parametric field is displayed on the Audit Plans-Audits-New Record screen in the Integrated Management System```>Audit Activity\>```Audit Plans menu.

1.1.1.1.1.9.List of Parametric Fields with Unit of Measure Type

Pending Audits in the Audit Activities Module -Perform Audit of Unplanned Audits menus - More information tab on the Record update screen and in the Audit Plans menu To define a Unit of Measure type parametric field on the Audit Plans-Audits-New Registration screen, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu and search for Unit of Measure type parametric fields by typing Unit of Measure in the type field and search for Unit of Measure type parametric fields The list of fields is listed in the Language Settings menu. Parametric fields with the Unit of Measure type are defined as the area.

1.1.1.1.1.10. Defining a Unit of Measure Type Parametric Field

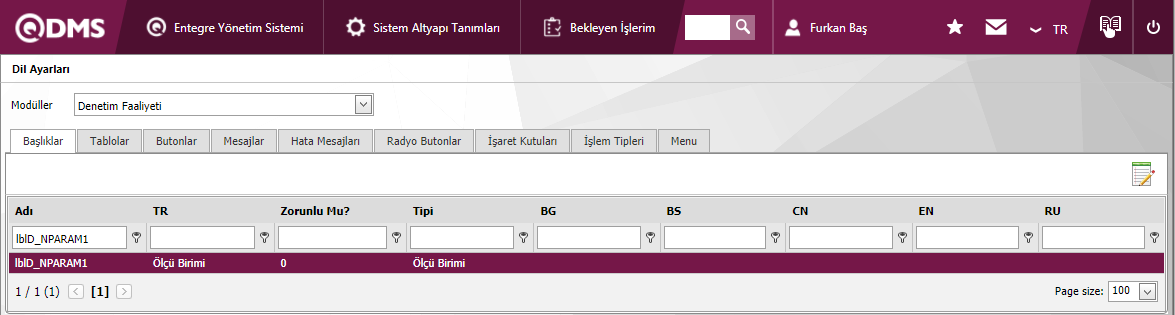

lblD_NPARAM1 To enter the data of the field by selecting the parametric field with the unit of measurement type (change) button is clicked.

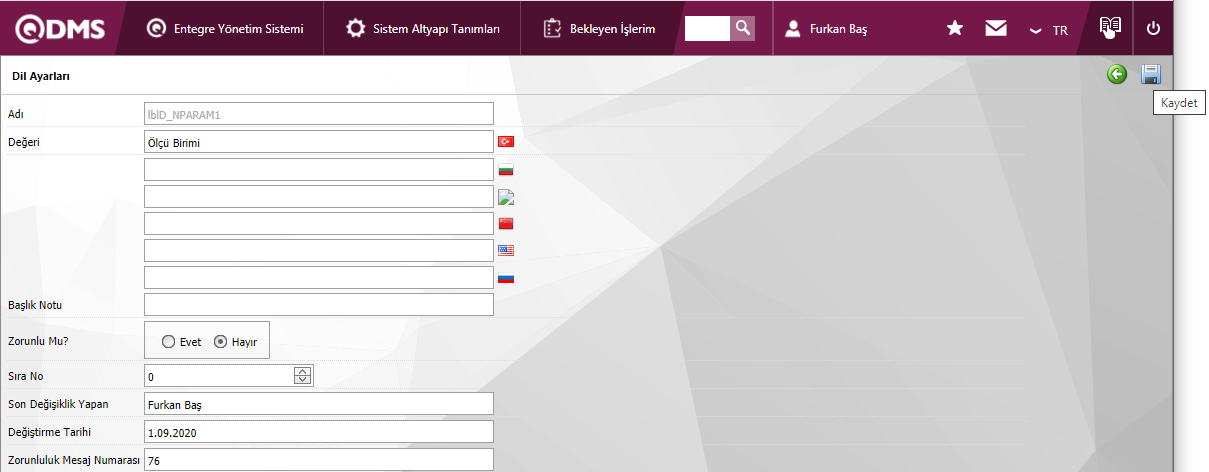

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(Save) button is clicked to record the definition of a parametric field with a unit of measurement type.

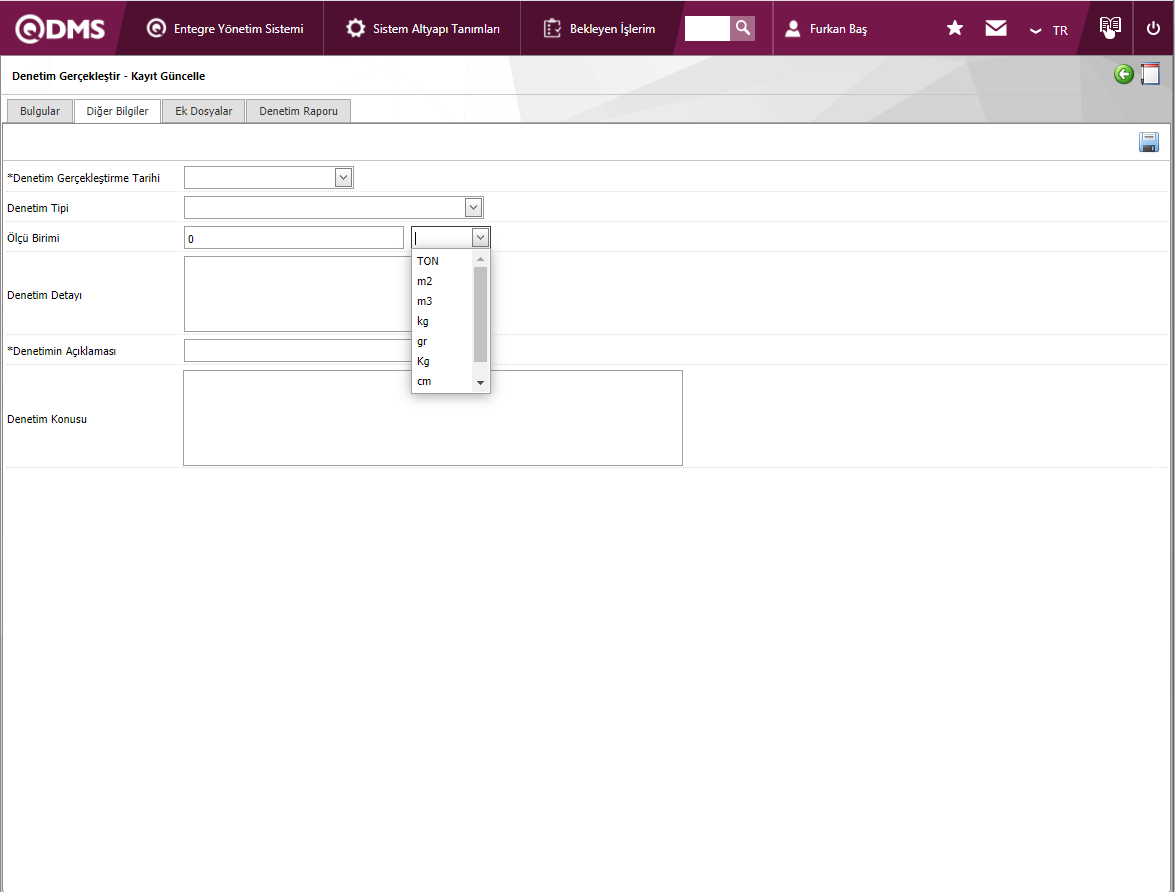

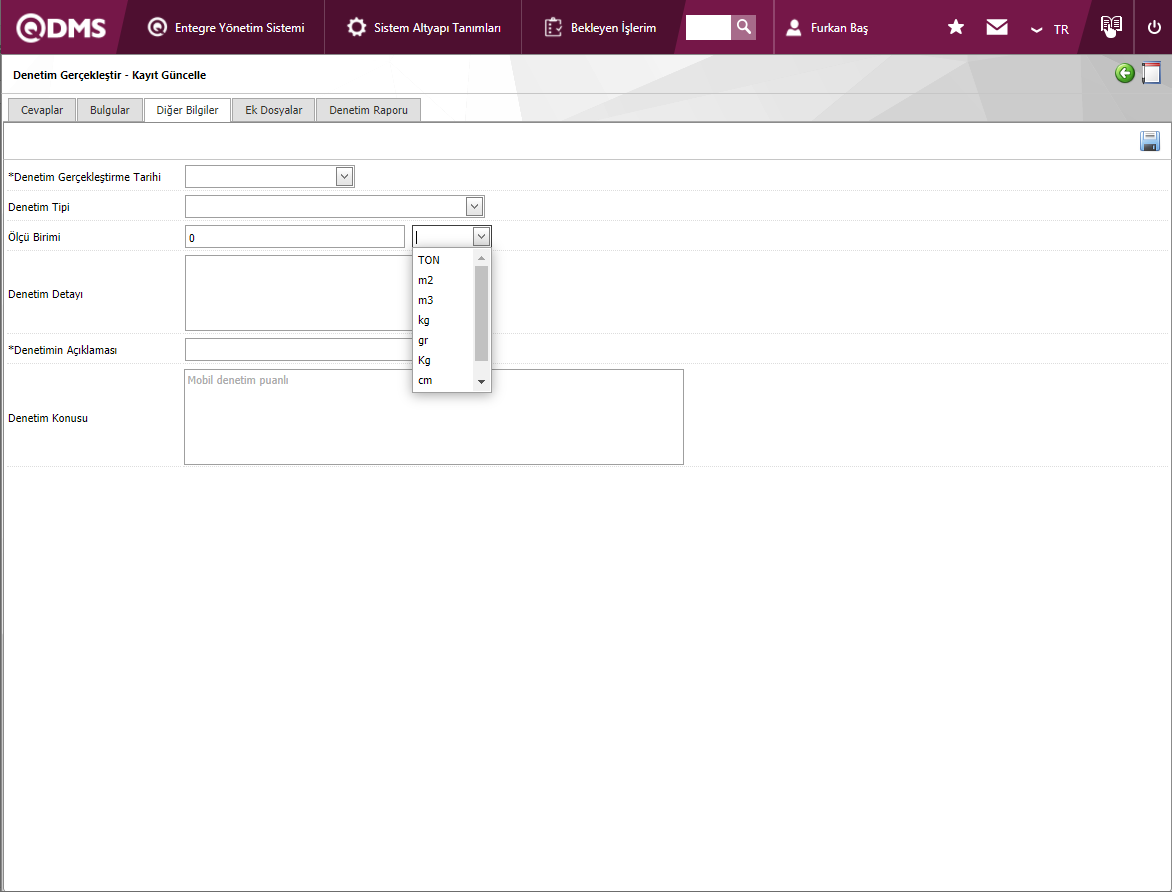

The defined Unit of Measure type parametric field is displayed on the Other Information tab on the Perform Audit-Update Record screen opened by clicking the Perform Audit button in the Integrated Management System```>Audit Activity\>```Pending Audits menu.

The parametric field with the defined Unit of Measure type is displayed on the More information tab on the Perform Audit-Update Record screen opened by clicking the Next button in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu.

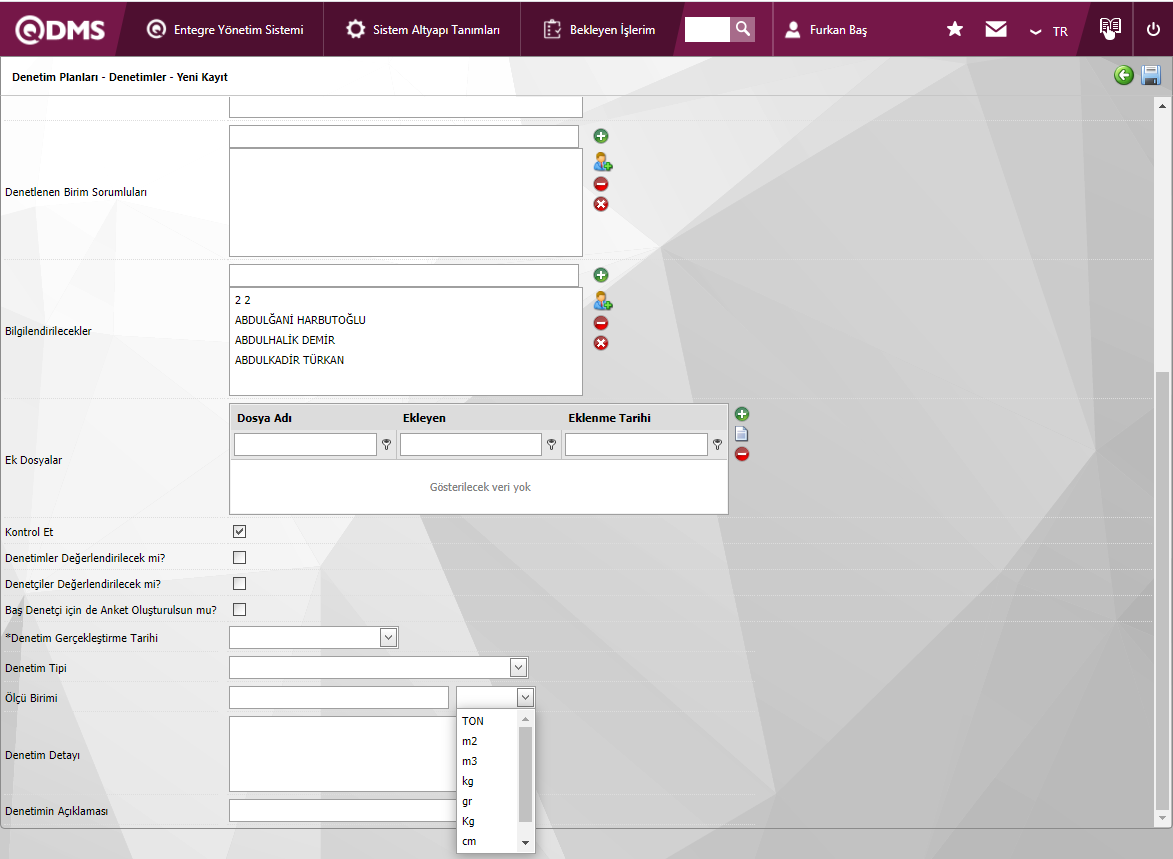

The defined Parametric Area of Measure type is displayed on the Audit Plans-Audits-New Record screen in the Integrated Management System```>Audit Activity\>```Audit Plans menu.

1.1.1.1.1.11.List of Parametric Fields with Monetary Type

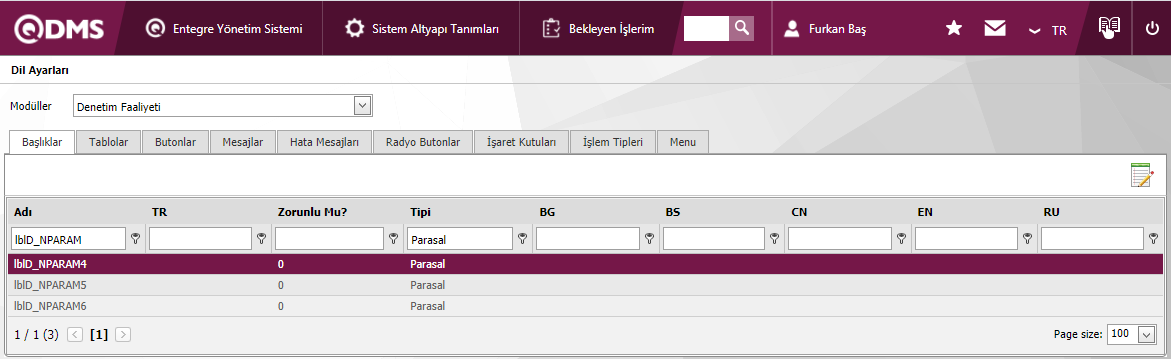

Pending Audits in the Audit Activities Module -Perform Audit of the Unplanned Audits menus - Other information tab on the Registration update screen and in the Audit Plans menu To define a parametric field with a monetary type on the Audit Plans-Audits-New Registration screen, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, search for Monetary type parametric fields by typing Monetary in the type field and list of parametric fields with monetary type Language The settings are listed on the menu. The area definition of the listed monetary type parametric fields is made.

1.1.1.1.1.12.Monetary Type Parametric Field Identification

lblD_NPARAM4 For the data entry of the field by selecting the field with monetary type (change) button is clicked.

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(Save) button is clicked to record the definition of a parametric field with monetary type.

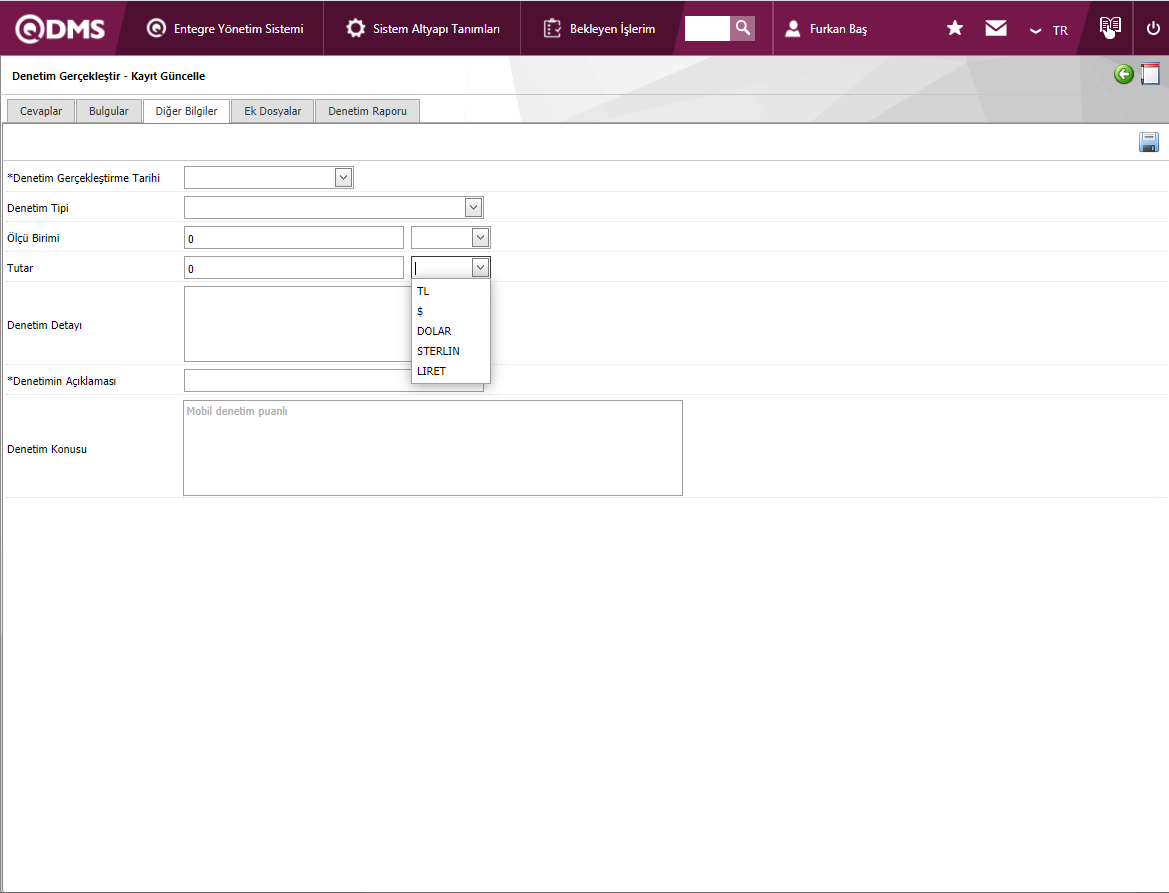

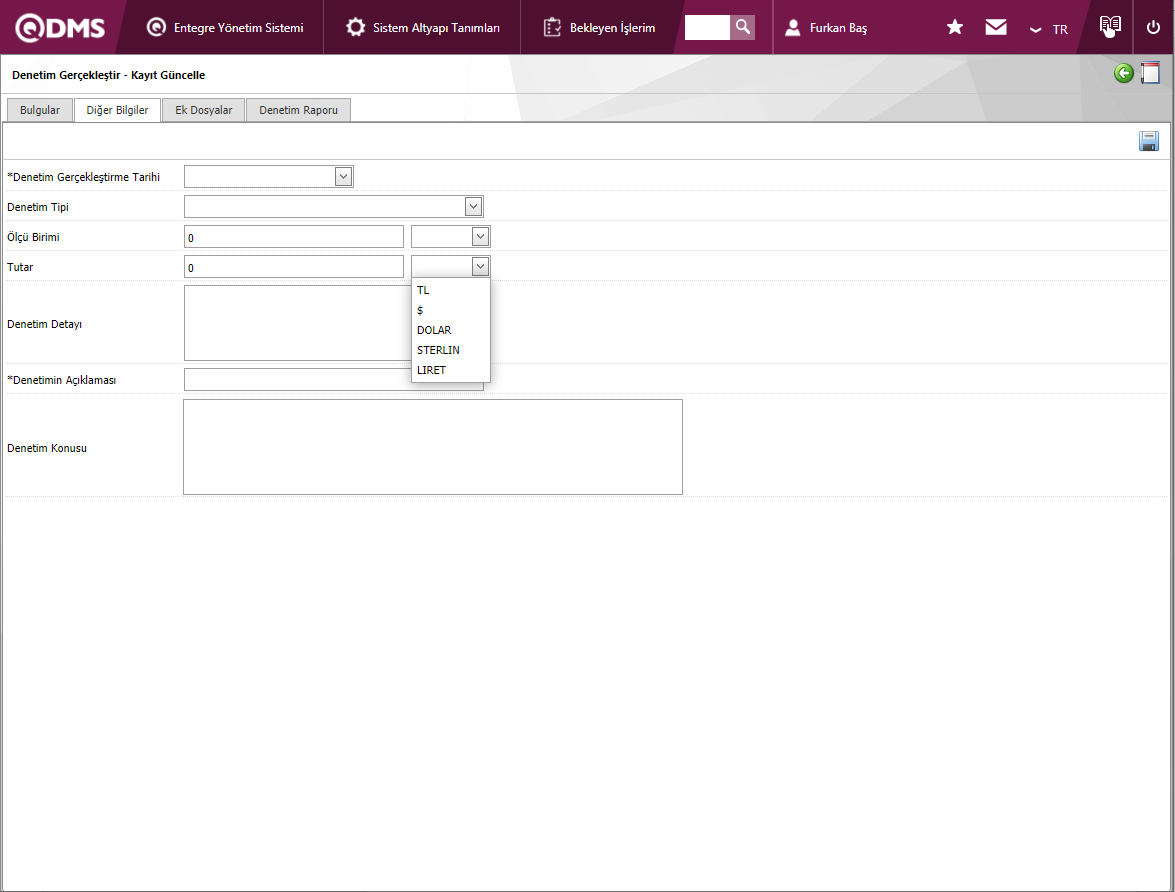

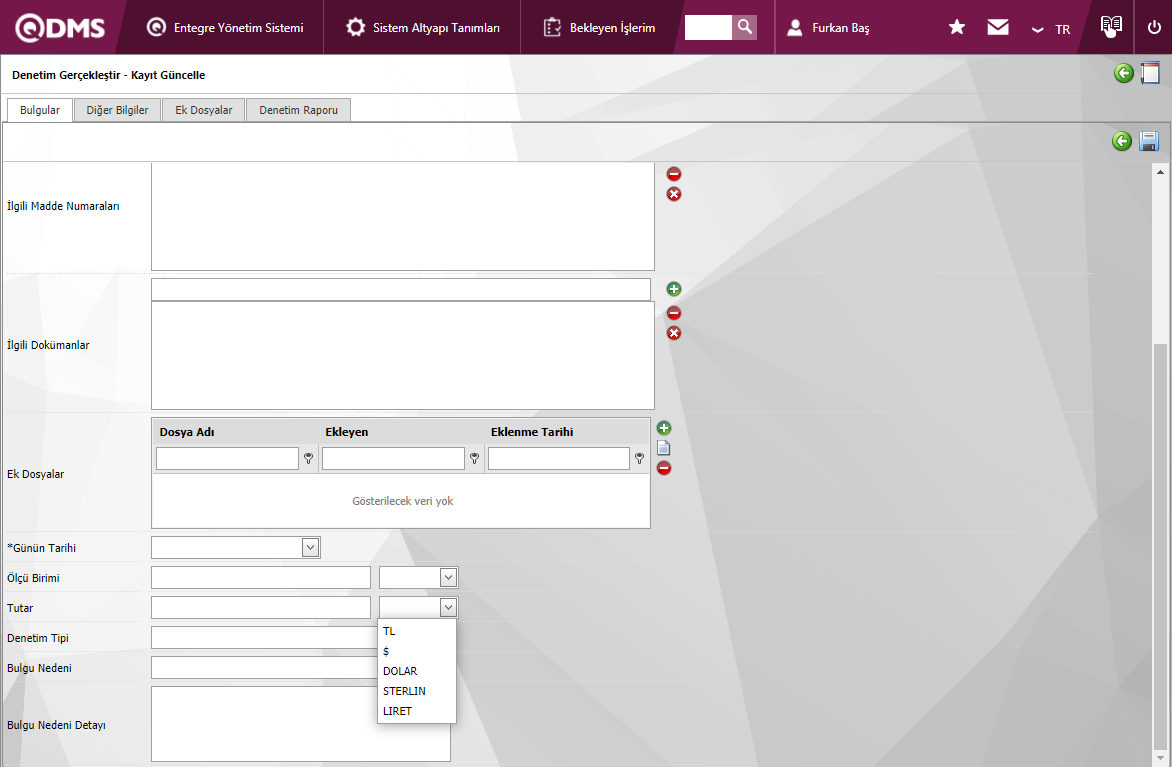

The defined Parametric field with monetary type is displayed on the Other Information tab on the Perform Audit-Update Record screen opened by clicking the Perform Audit button in the Integrated Management System```>Audit Activity\>```Pending Audits menu.

The defined Parametric field with monetary type is displayed in the Integrated Management System```>Audit Activity\>```Perform Audit-Update Record, Other information tab, which is opened by clicking the Next button in the Unplanned Audits menu.

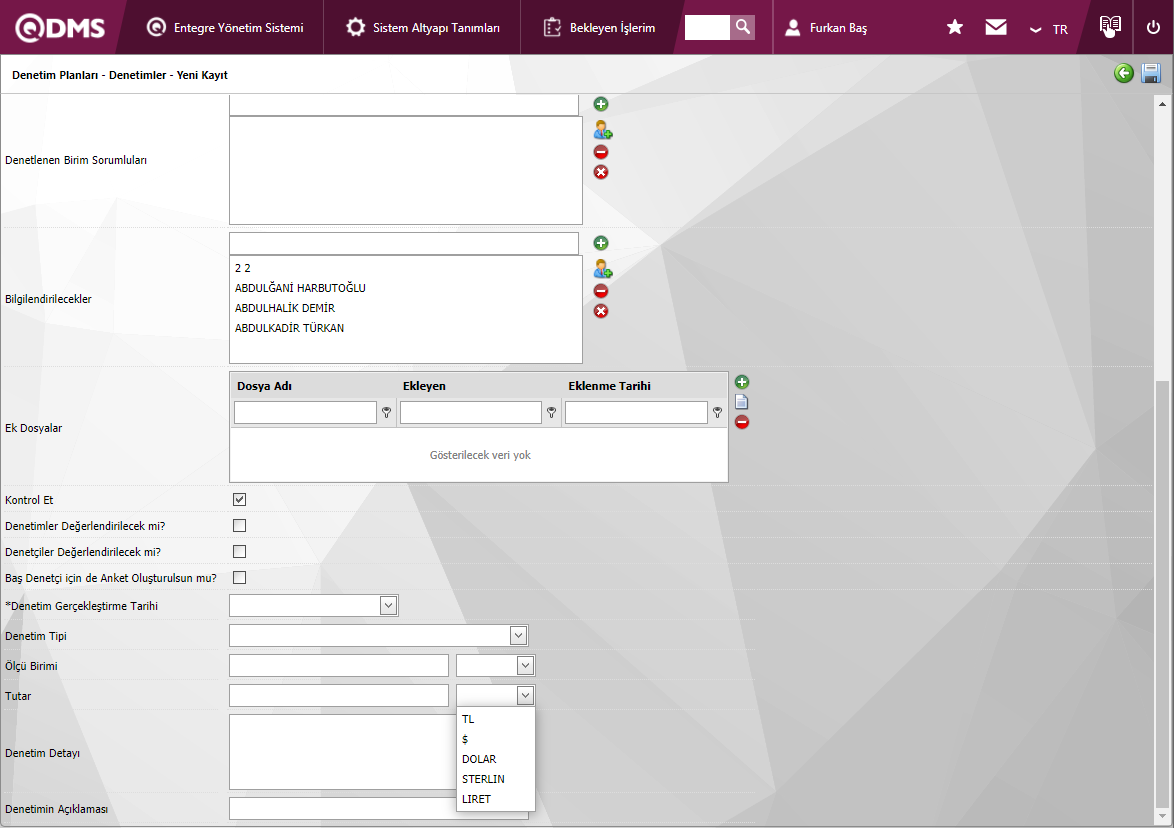

The defined Parametric field with monetary type is displayed on the Audit Plans-Audits-New Record screen in the Integrated Management System```>Audit Activity\>```Audit Plans menu.

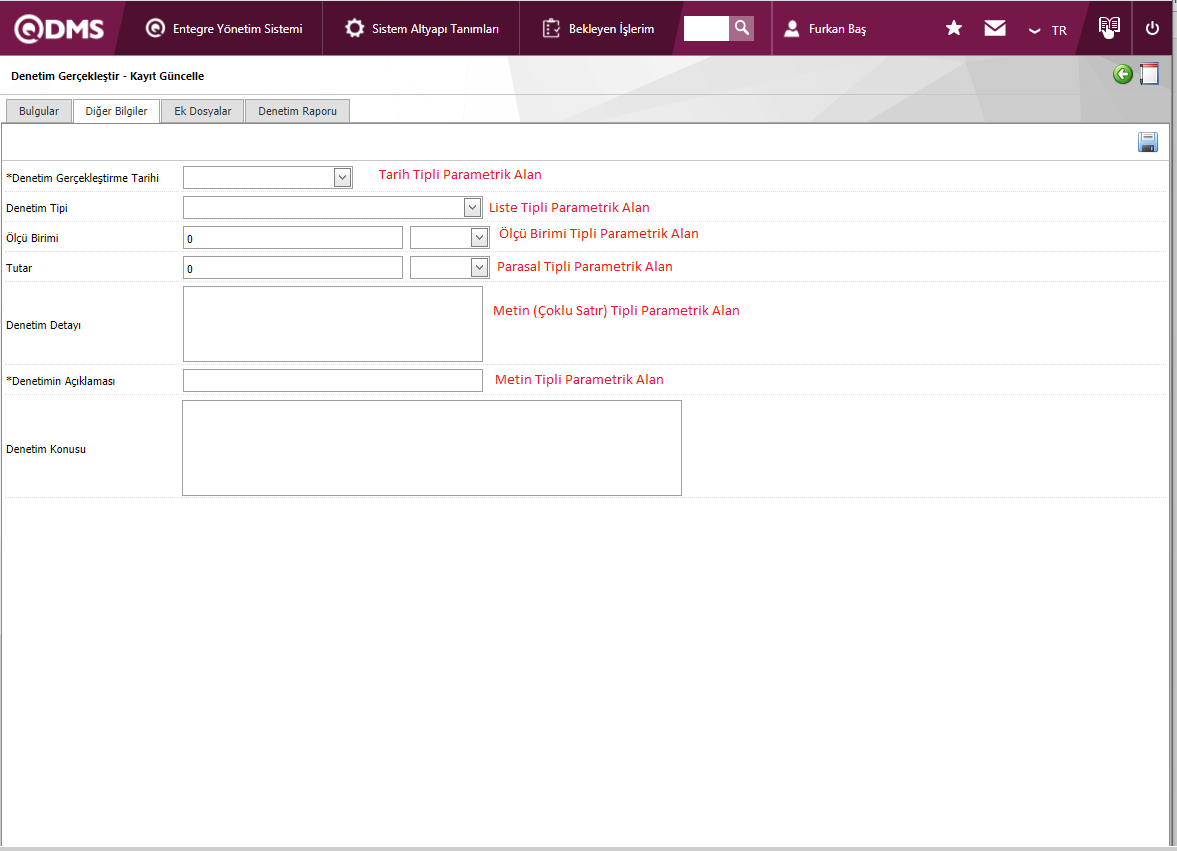

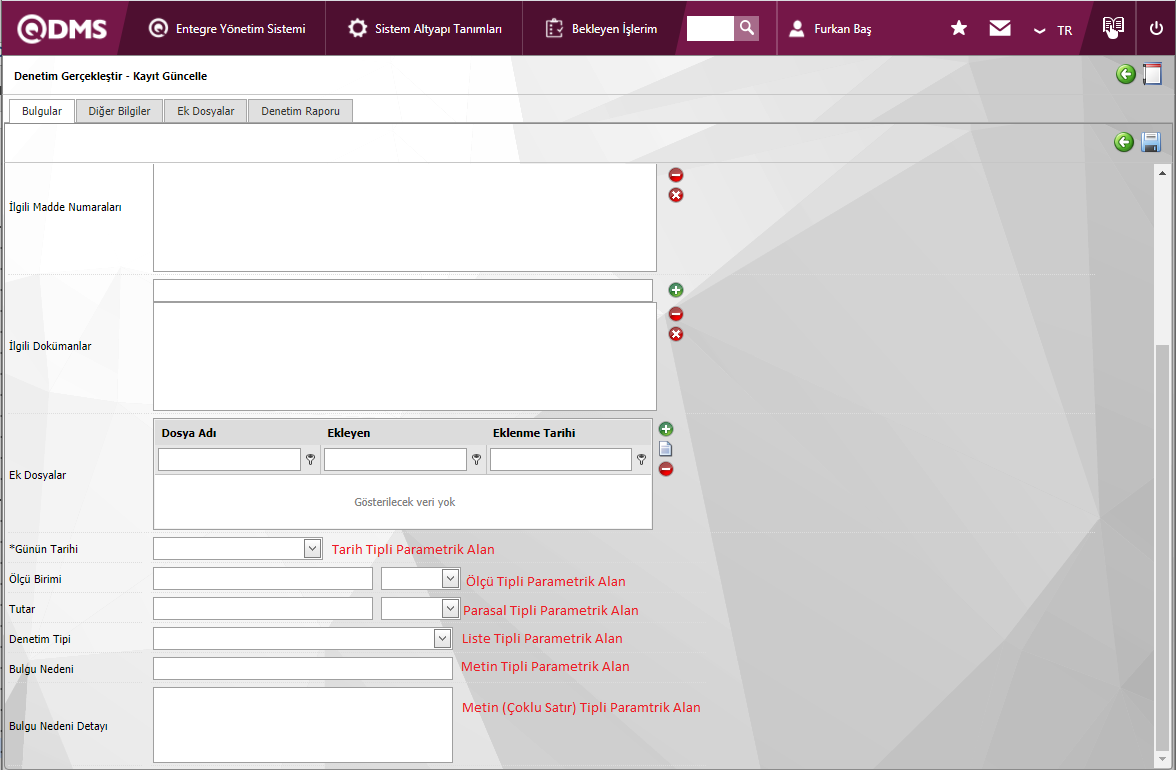

All Parametric Type fields defined in the Language settings on the Perform Check-Record Update screen;

1.1.1.1.2.Defining a Parametric Field in the Audit Activity Module for Pending Audits and Unplanned Audits Menu (Findings Tab)

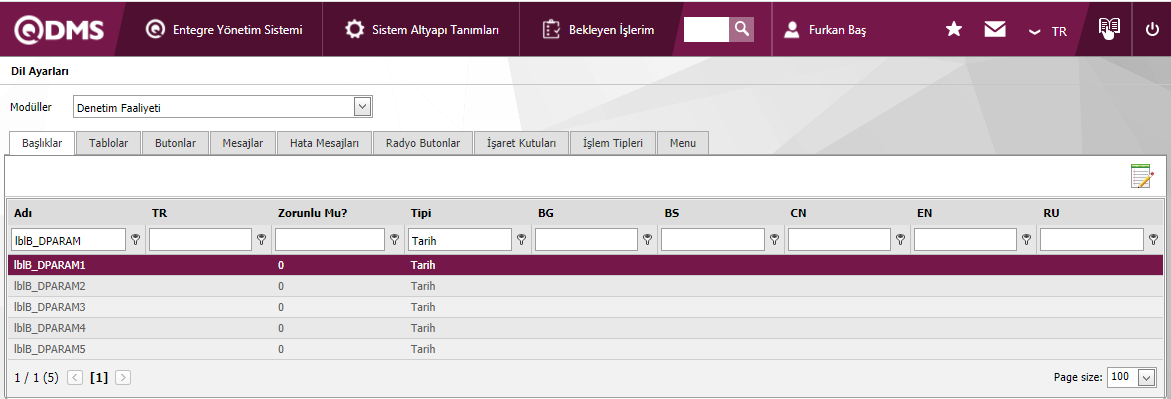

1.1.1.1.2.1.List of Date Type Parametric Fields

In order to define a Date-type parametric field on the Finding Identification screen, which is opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus in the Audit Activities Module, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, search for Date-type parametric fields by typing Date in the type field and the list of Date-type parametric fields is listed in the Language settings menu. The field definition of the listed date-type parametric fields is made.

1.1.1.1.2.2.Date Type Parametric Field Identification

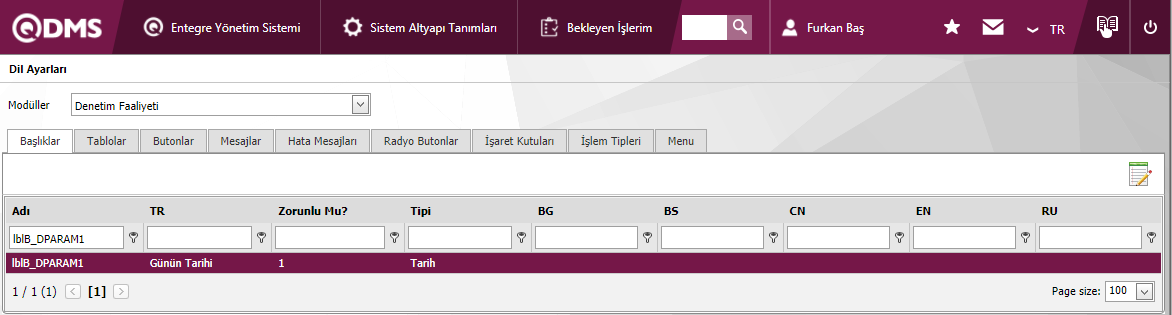

lblB_DPARAM1 To enter the data of the field by selecting the date type parametric field (change) button is clicked.

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(Save) button is clicked to record the date type parametric field definition.

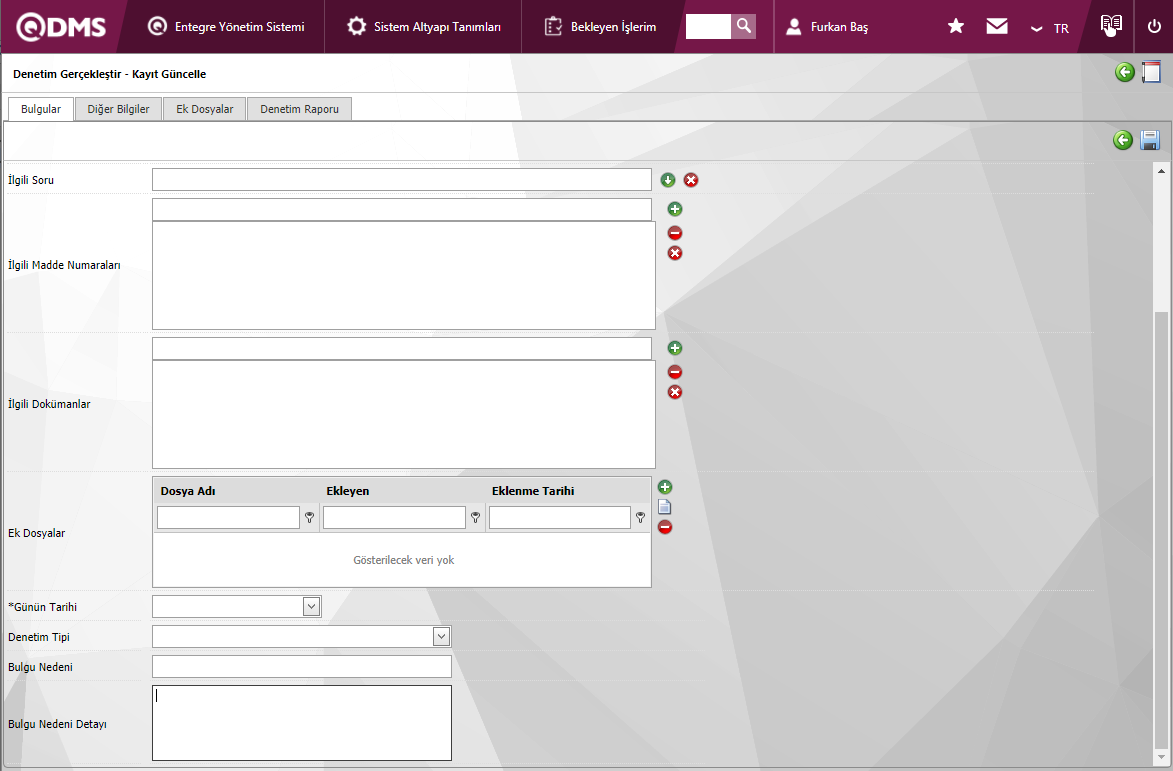

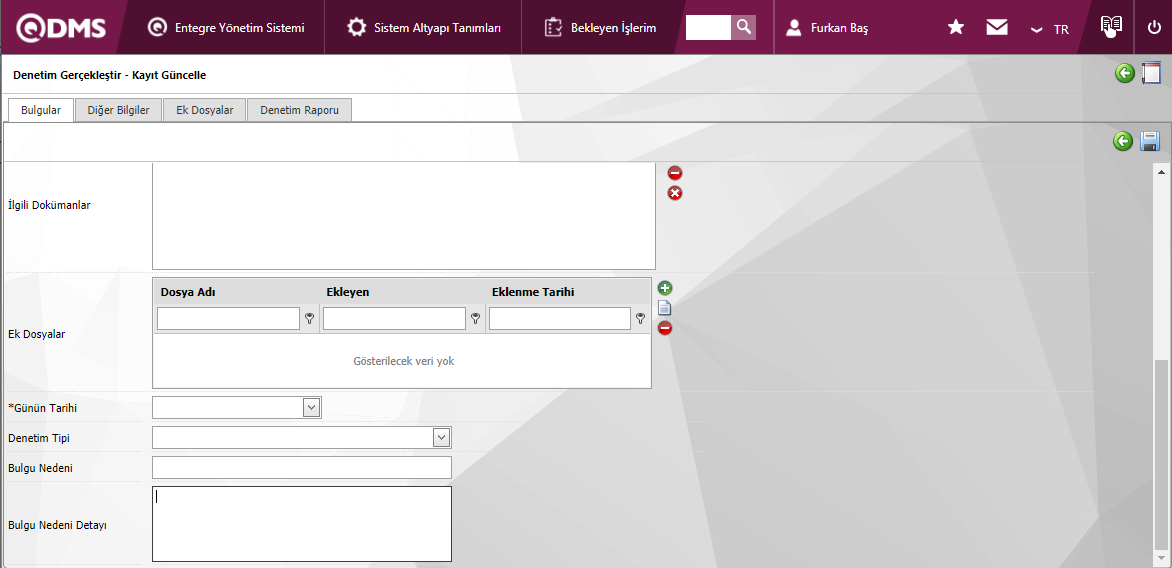

The defined Date type parametric field is displayed on the Finding Identification screen opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Pending Audits menu, Perform Audit- Update Record.

The defined Date-type parametric field is displayed on the Finding Identification screen, which is opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu, Perform Audit- Update Record.

1.1.1.1.2.3.List of Parametric Fields with List Type

To define a List-type parametric field on the Finding Identification screen, which is opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus in the Audit Activities Module, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, search for List-type parametric fields by typing List in the type field and list of List-type parametric fields is listed in the Language settings menu. Listen List type parametric fields are defined as fields.

1.1.1.1.2.4.Defining a List Type Parametric Field.

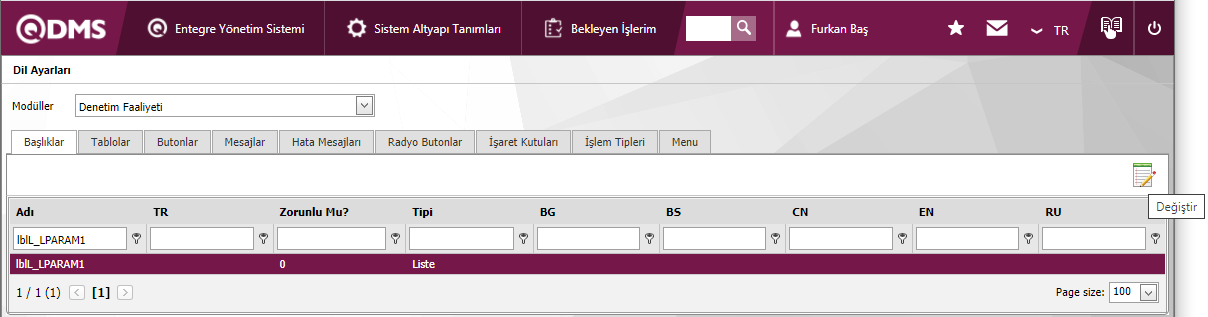

lblL_LPARAM1 For data entry of the field by selecting the list type parametric (change) button is clicked.

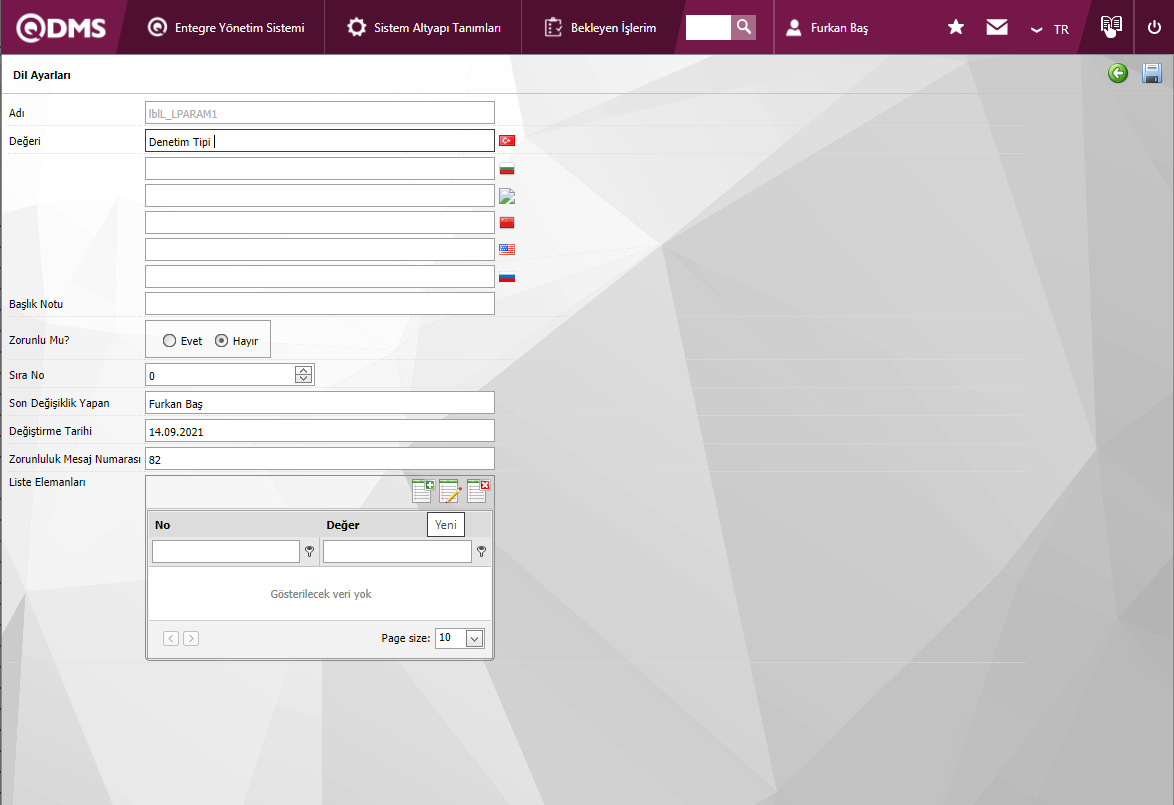

On the screen that opens, the field name we want to see is written in the value field.

To enter the list values of a list-type field Click the (New) button, type the list values and save them. The list element value is defined for 1.

A list element value of 2 is defined for the definition.

Whether the field will be mandatory or not, by defining the sequence no information and list elements and filling in the required fields(Save) button is clicked to record the list-type parametric field definition.

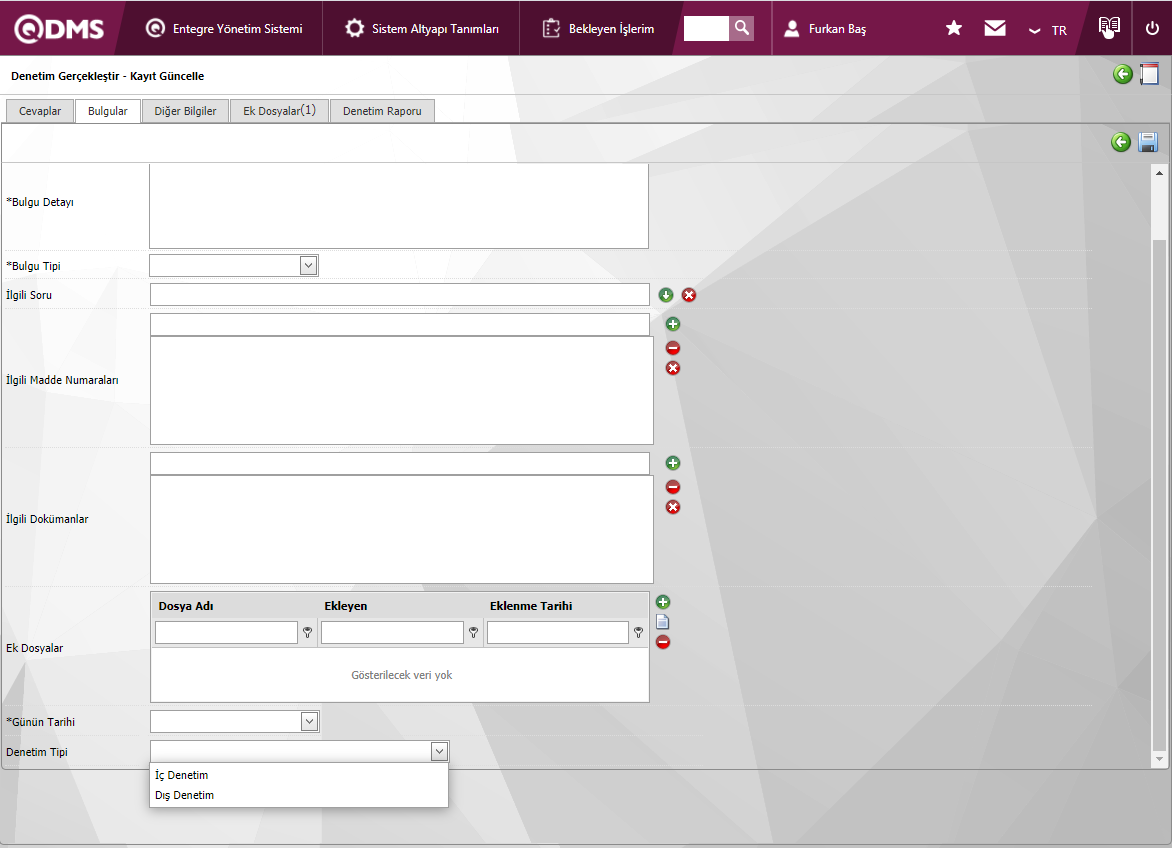

The defined List-type parametric field is displayed on the Finding Identification screen, which is opened by clicking the New button on the Findings tab on the Findings tab in the Integrated Management System```>Audit Activity\>```Pending Audits menu, Perform Audit- Update Record.

The defined List-type parametric field is displayed on the Finding Identification screen, which is opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu, Perform Audit- Update Record.

1.1.1.1.2.5.List of Parametric Fields with Text Type

To define a Text-type parametric field on the Finding Identification screen, which is opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus in the Audit Activities Module, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, type Text in the type field, search for Text-type parametric fields and list of Text-type parametric fields is listed in the Language settings menu. The field definition of the listed text-type parametric fields is made.

1.1.1.1.2.6.Defining a Text-Typed Parametric Field

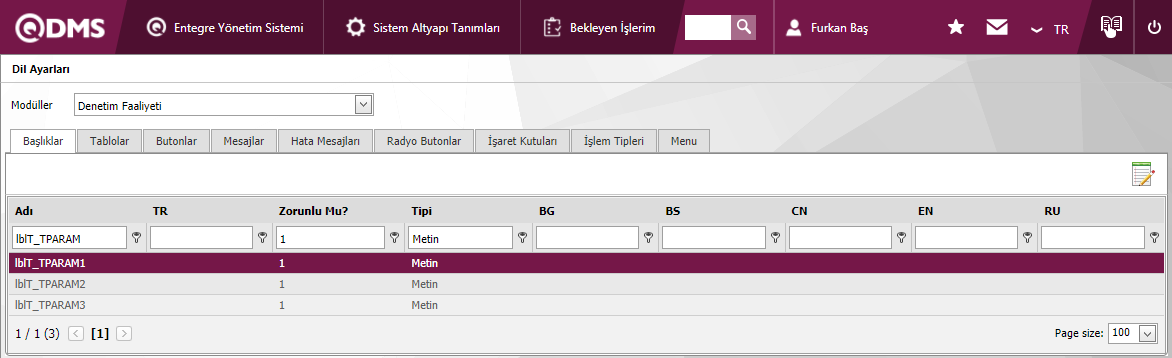

lblT_TPARAM1 To enter the data of the field by selecting the parametric field with text type (change) button is clicked.

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(save) button to record the text type parametric field definition.

The defined Text-type parametric field is displayed on the Finding Identification screen, which is opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Pending Audits menu, Perform Audit- Update Record.

The defined Text-type parametric field is displayed on the Finding Identification screen, which is opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu, Perform Audit- Update Record.

1.1.1.1.2.7.List of Parametric Fields with Text (Multiline) Type

To define a Text (Multi-Line) type parametric field on the Evidence Identification screen, which is opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus in the Audit Activities Module, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, type Text (Multiple Line) by typing Text (Multiple Line) in the type field and search for parametric fields of Text (Multiple Line) type The list of fields is listed in the Language Settings menu. The field definition of the listed Text (Multiline) type parametric fields is made.

1.1.1.1.2.8.Text (Multiline) Type Parametric Field Identification

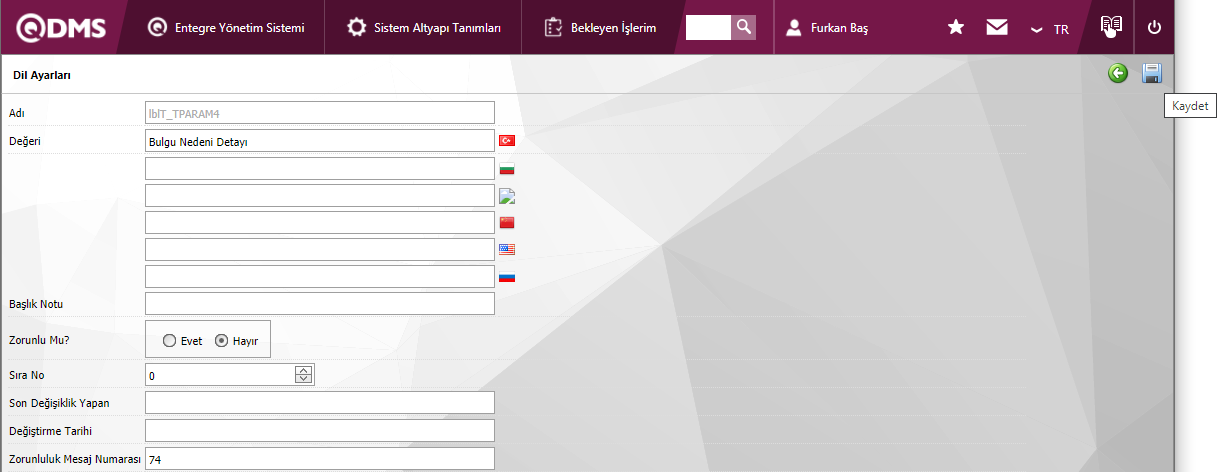

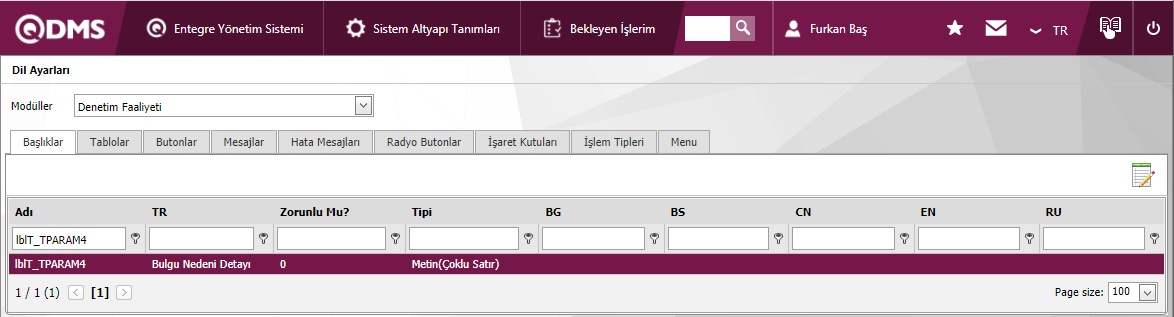

lblT_TPARAM4 To enter the data of the field by selecting the text (Multi Line) type parametric field (change) button is clicked.

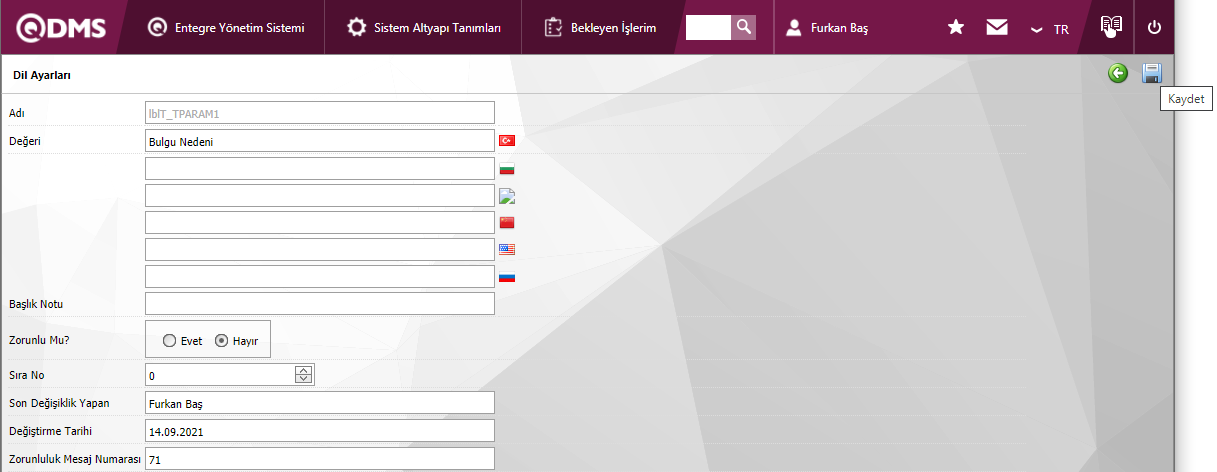

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(save) button to record the Text (Multiline) type parametric field definition

The parametric field of the defined Text (Multi Line) type is displayed on the Finding Identification screen, which is opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Pending Audits menu, Perform Audit- Update Record.

The Defined Text (Multi Line) parametric field is displayed on the Finding Identification screen opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu, Perform Audit- Update Record.

1.1.1.1.2.9.List of Parametric Fields with Unit of Measure Type

To define a Unit of Measurement type parametric field on the Finding Identification screen opened by clicking the New button on the Findings tab on the Perform Audit - Update Record screen in the Pending Audits and Unplanned Audits menus in the Audit Activities Module, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, search for Unit of Measurement type parametric fields by typing Unit of Measurement in the type field and list of parametric fields with Unit of Measurement type Language settings menu. Parametric fields with the Unit of Measure type are defined as the area.

1.1.1.1.2.10.Defining a Parametric Field with a Unit of Measure Type

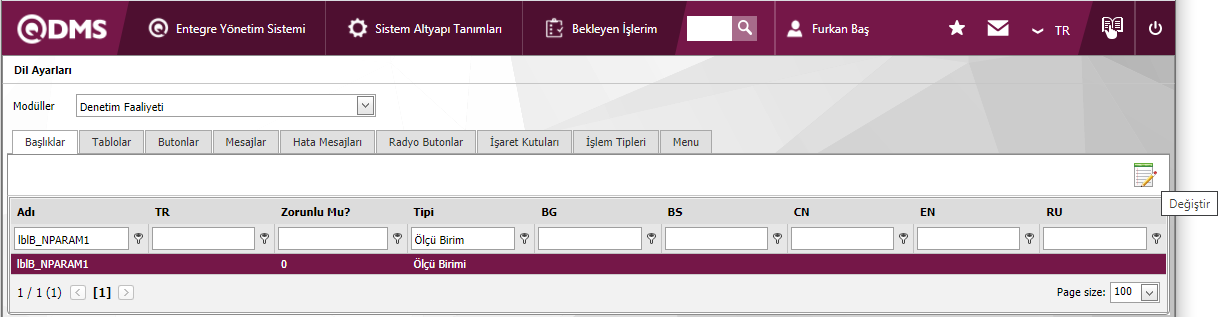

lblB_NPARAM1 To enter the data of the field by selecting the parametric field with the unit of measurement type, (change) button is clicked.

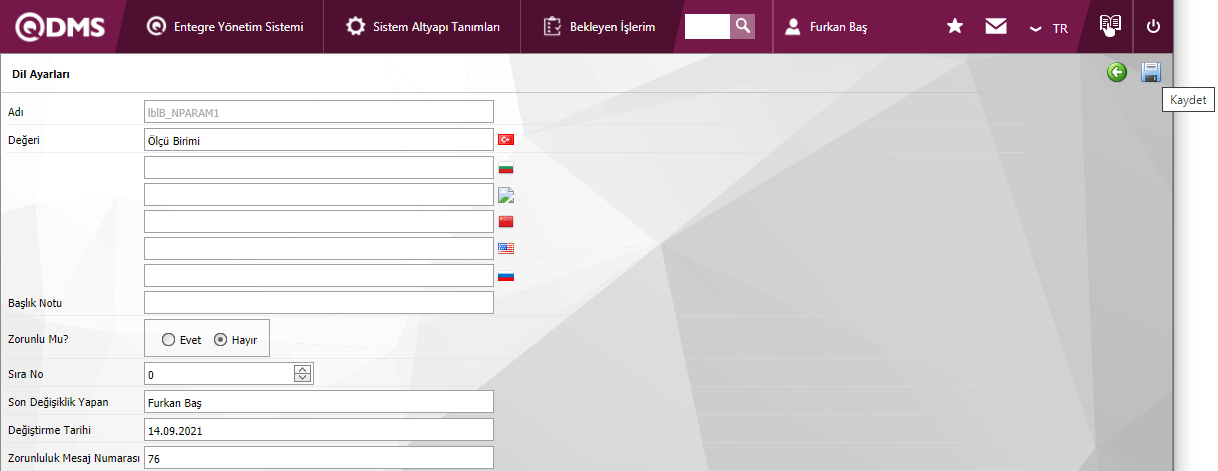

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(Save) button is clicked to record the measurement unit type parametric field definition

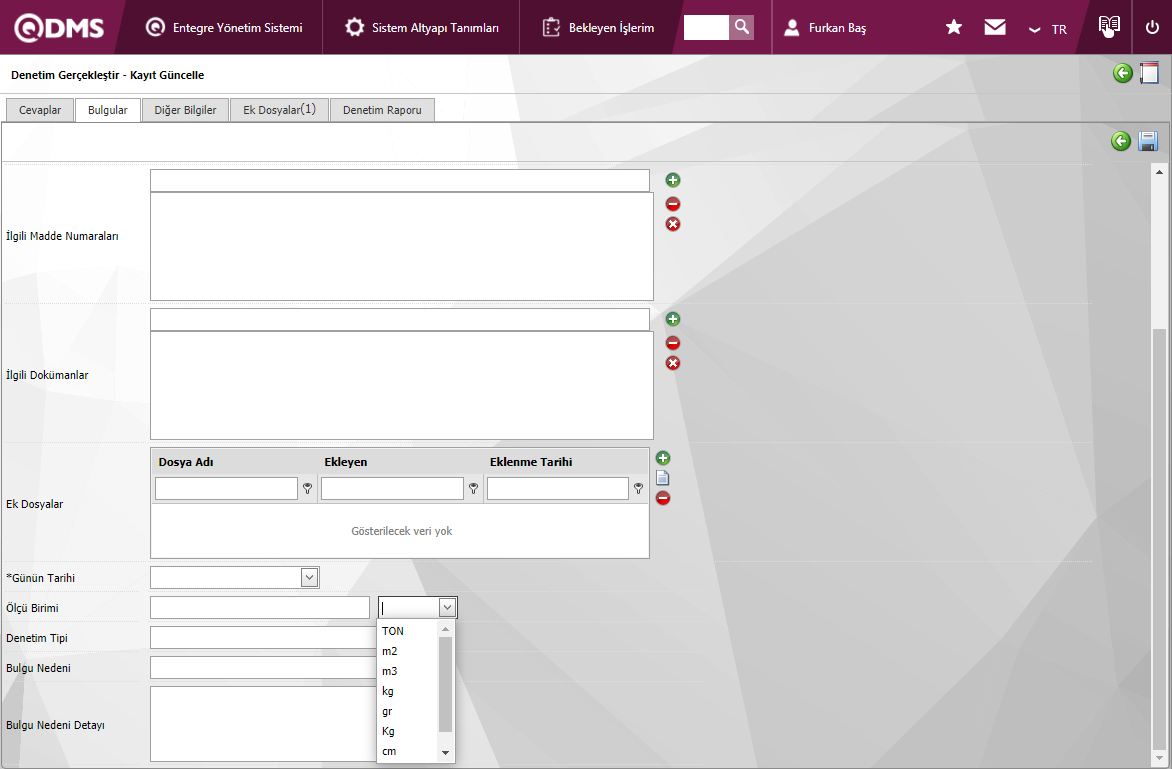

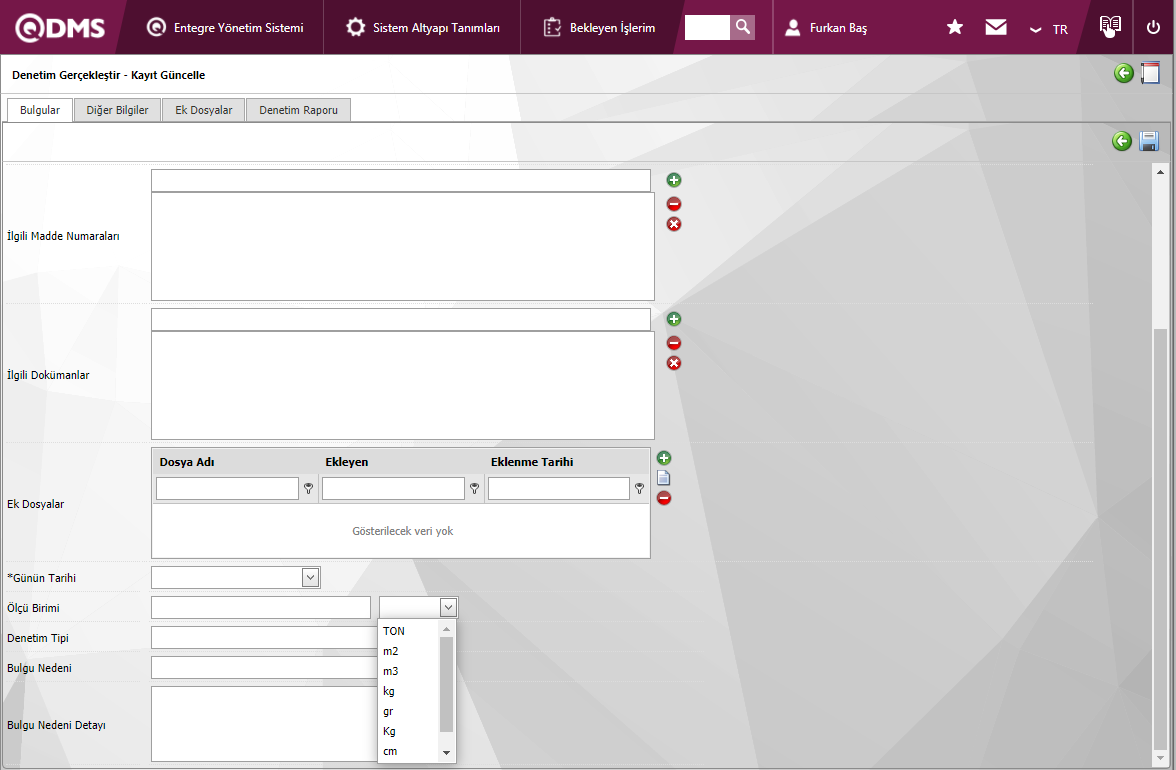

The parametric field with the defined Unit of Measure type is displayed on the Finding Identification screen opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Pending Audits menu, Perform Audit- Update Record.

The defined Unit of Measure type parametic field is displayed on the Finding Identification screen opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu, Perform Audit- Update Record.

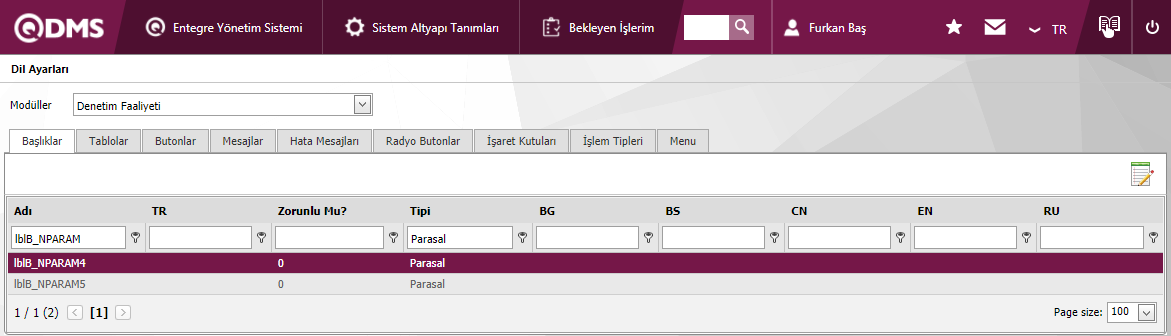

1.1.1.1.2.11.List of Parametric Fields with Monetary Type

To define a Parametric field with a Monetary Type type in the Finding Definition screen opened by clicking the New button on the Findings tab on the Perform Audit in the Audit Activities Module and Unplanned Audits menus in the Audit Activities Module, first go to the System Infrastructure Definitions/ BSAT/ Configuration Settings/ Language Settings menu, search for Monetary type parametric fields by typing Monetary in the type field and the list of Parametric fields with monetary type is displayed in the Language settings menu is listed. A field definition is made to the listed Monetary type parametric fields.

1.1.1.1.2.12.Defining a Parametric Field with a Monetary Type

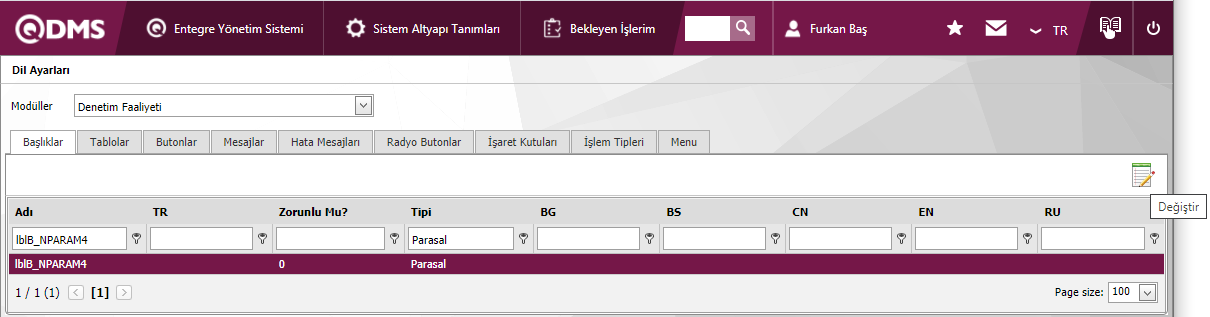

lblB_NPARAM4 For the data entry of the field by selecting the field with monetary type (change) button

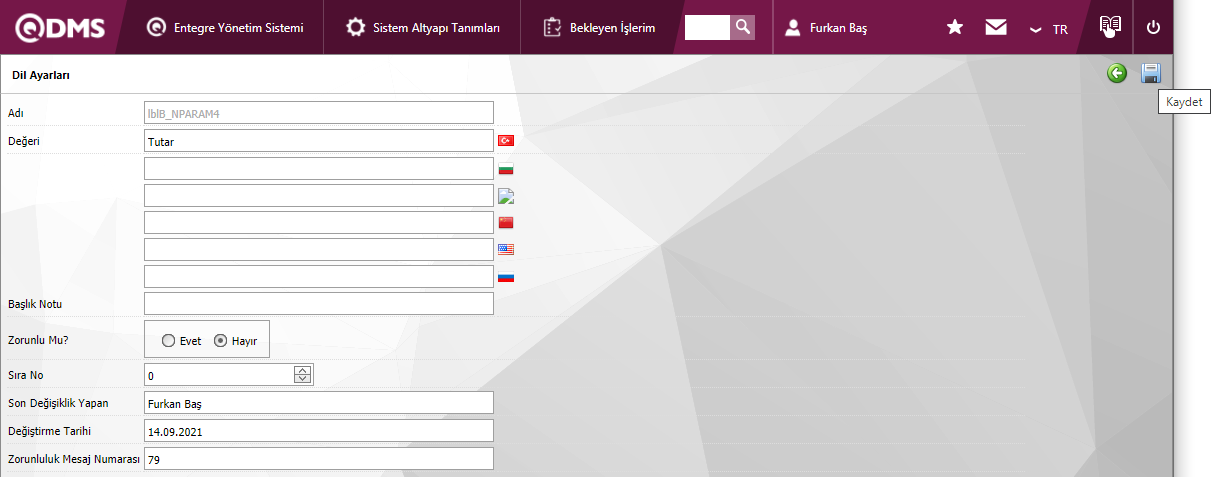

On the screen that opens, the field name we want to see is written in the value field.

By filling in the required fields such as the order no information whether the field will be mandatory or not(Save) button is clicked to record the definition of a parametric field with monetary type.

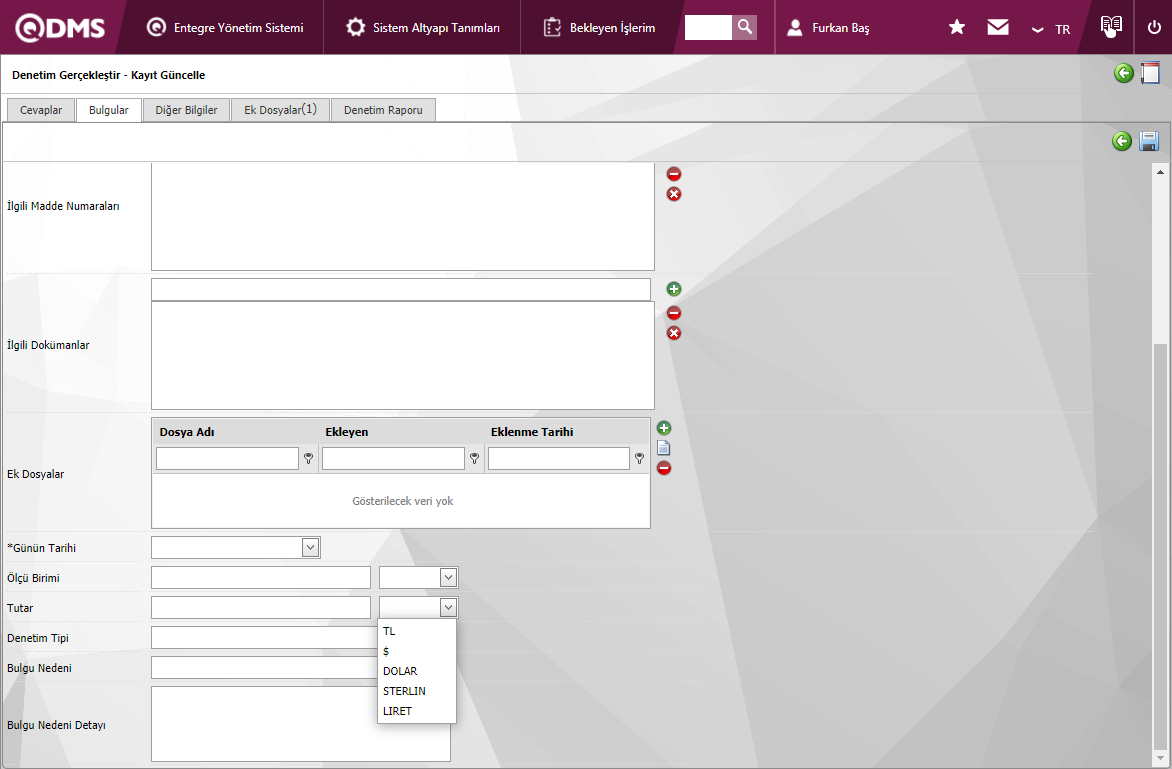

The defined Parametric field with monetary type is displayed on the Finding Identification screen opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Pending Audits menu, Perform Audit- Update Record.

The parametric field with the defined Unit of Measure type is displayed on the Finding Identification screen opened by clicking the New button on the Findings tab in the Integrated Management System```>Audit Activity\>```Unplanned Audits menu, Perform Audit- Update Record.

T

Perform Audit - All Parametric Type Fields Defined in the Language Settings on the Record Update Screen;

1.1.1.1.1.3. Parametric Area types defined in language settings Display Remove from Screen

In Step 1, the screen with the parametric area opens. In the example, the Integrated Management System```>Audit Activity\>```Pending Audits menu is displayed on the Other Information tab on the Perform Audit-Update Record screen, which is opened by clicking the Perform Audit button.

2. After the screen with the Parametric Area is displayed in the stage, the name of the parametric field is copied with the Right Click/Copy command by selecting any field in the example. Example:Description of the Control

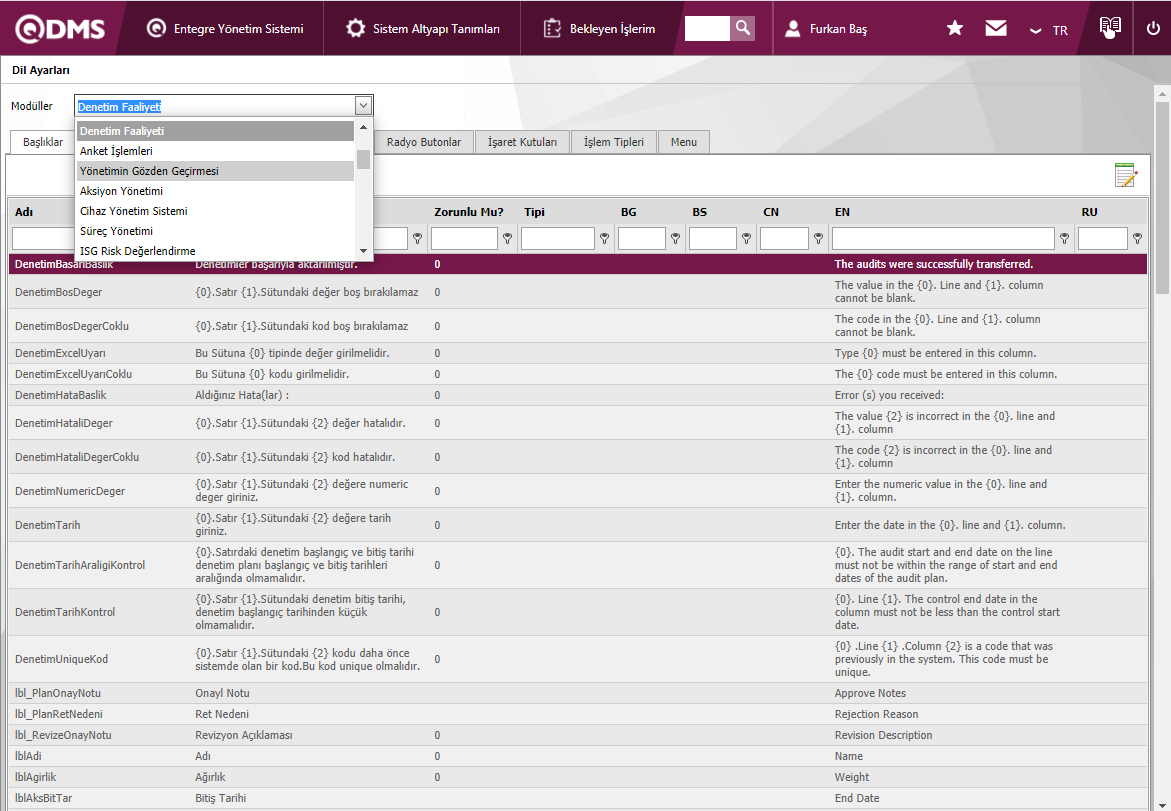

3. At the stage>, the Audit Activity Module is selected as the Module on the screen opened by clicking the System Infrastructure Definitions\BSAT```>Configuration Settings\>```Language settings menu. The Text type parametric field defined from the copied Language settings is pasted with the right click/paste command in the EN field on the grid screen.

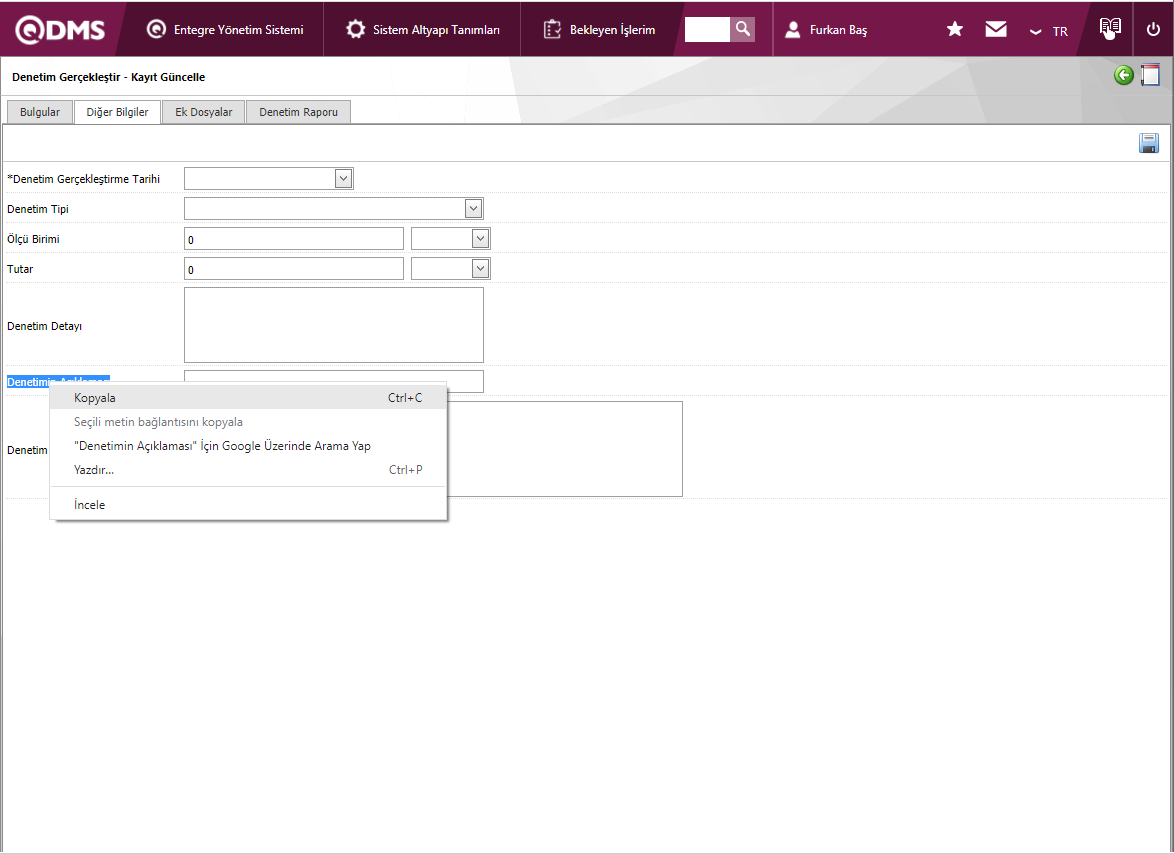

To display the content of the field by selecting the Parametric field with Text Type type in the 4th stage (change) button is clicked.

In Step 5, delete the value portion of the text typed field that displays the content(Save) button to remove the text type field defined in the Language Settings menu.

The removal process in the language settings menu of other parametric field types defined in System Infrastructure Definitions/BSAT/Configuration Settings is the same. On the Perform Audit-Update Recording screen, which is opened by clicking the Perform Audit button in the Integrated Management System```>Audit Activity\>```Pending Audits menu, the text type field defined on the Other Information tab is removed.
