Subflow Start Object

Subflow Start, one of the flow design objects of eBA Workflow Studio, is the starting point of the sub-process with a beginning and an end, designed independently of the main process to perform a series of sub-operations necessary for the flow to continue

The "Start Substream" object is located under Downstream Controls in the Toolbox. This object is an object that works in conjunction with the Substream Invocation and Substream End objects. The Subflow Start object establishes the starting point of the subflow to be created so that it does not receive any connections, then the process steps in between are sequenced, and the Subflow End object is positioned at the end of the subflow. This object is dragged to an appropriate point on the Flow Design Form so that it does not receive any links. More than one connection arrow can emerge from the object, the operations performed after these connection arrows must be collected at one point and connected to the Subflow End object so that the subflow can continue from where it was called.

General

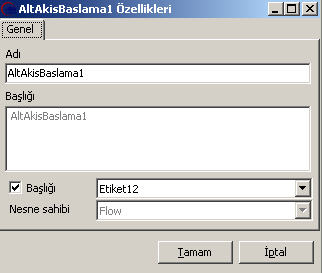

The General tab is the tab that hosts the object title and name information. For convenience when editing on the flow design side, it is useful to give logical names to the name and title information of the objects. In a detailed flow design, the desired object may not be visible by looking at the design part. In this case, the Object Explorer on the right is used to easily find the object. Giving names to objects that will provide ease of development also allows the object to be easily found from this section when searching.
